Details

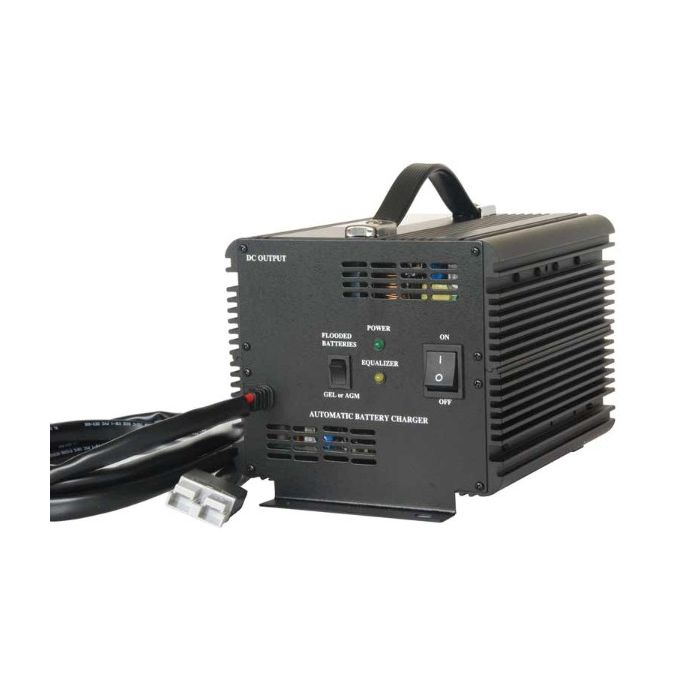

This Japlar Schauer golf cart charger is specifically designed to work with EZ Go and Western Carts that have the space to include a 7th battery. The hardwired six foot output cord comes standard with the gray SB50 connector. The JAC1742 features an auto-sensing universal input from 100-240VAC. It is perfect for wet cell, gel and AGM style deep cycle batteries. The JAC1742 is made with a durable aluminum case and has flanges for mounting. We are no longer able to source the Western specific cart connector. You will need to use your existing connector, by cutting the DC cord off your old charger (to any length you desire) and adding a grey SB50 connector . This will create a plug-in-play connection with the new Schauer 42V charger. This adaptation is easy to install and will allow you to continue using your Western Golf Cart.
| Brand | Schauer |
|---|---|
| Model | JAC1742-SB |
| Chemistry | Lead Acid |
| Dimensions (LxWxH - metric) | 286 x 178 x 171 |
| Dimensions (LxWxH - inches) | 11.25 x 7.0 x 6.75 |
| Input Frequency (Hz) | 50/60 |
| Input Voltage (VAC) | 100-240 |
| Maximum Current (Ah, mAh) | 17 |
| Operating Temp. Range (oC) | 32-120 |
| Output Banks | 1 |
| Output Voltage - Charging (V) | 51.9 |
| Output Voltage - Float (V) | 47.3 |
| Ripple (%) | No |
| Voltage (VDC) | 42 |
| Warranty | 2 Year |
| Weight (lb) | 11 |
