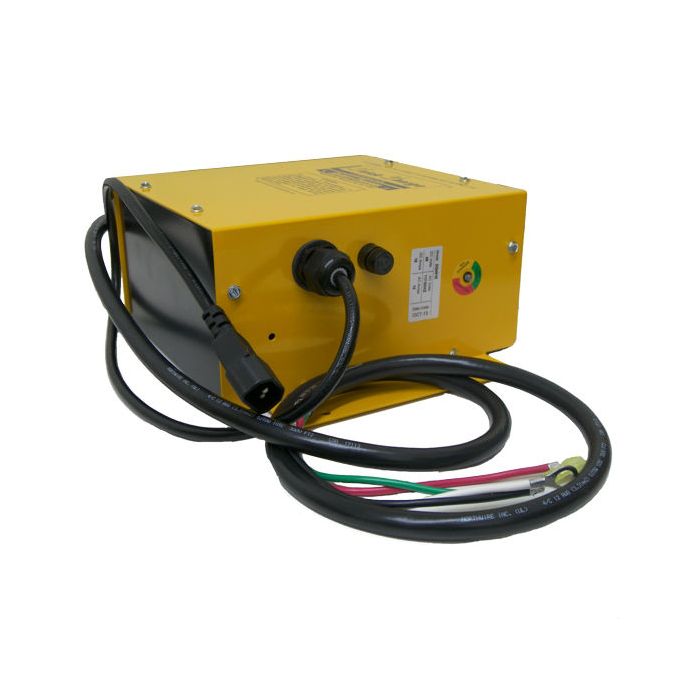

Delta Q DQ7212 Replacement Charger front View 912-7200Delta Q DQ7212 Replacement Charger front View 912-7200
Move your mouse over image or click to enlarge
Delta Q DQ7212 Replacement Charger Side View Delta Q DQ7212 Replacement Charger front View 912-7200 Delta Q DQ7212 Replacement Charger Back View

Quick Charge DQ7212 Charger Replaces Delta Q 912-7200

Ask a Question (0)

Availability: In stock

Availability Note: 5-10 Day Build Time


Quick Overview

This drop-in ready 72 Volt 12 amp DQ7212 Quick Charge charger is designed to replace the Delta Q Quiq charger: 912-7200. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.

Brand: Quick Charge
Sku: DQ7212

Delta Q Quiq Charger Replacement Features:

  • Designed to be plug-n-play ready for Delta Q
  • Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
  • Reverse polarity spark free operation
  • No moving parts, and an integral design
  • Fully automatic with float maintenance
  • Return to charge maintenance mode
  • Tough metal cast enclosure
  • 3 Year warranty & MADE IN USA

Delta Q chargers are found in Cushman, Taylor Dunn, Columbia ParCar and many other electric vehicles.

Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.

Availability Note 5-10 Day Build Time
Brand Quick Charge
Model DQ7212
Chemistry Lead Acid
Dimensions (LxWxH - metric) 279 x 246 x 109
Dimensions (LxWxH - inches) 11 x 9.7 x 4.3
Input Frequency (Hz) 60
Input Voltage (VAC) 120
Maximum Current (Ah, mAh) 20
Operating Temp. Range (oC) 32-120
Output Banks 1
Output Voltage - Charging (V) No
Output Voltage - Float (V) No
Ripple (%) No
Voltage (VDC) 72
Warranty 3 Year
Weight (lb) 12
