Details
The SEC2440A advanced fully automatic three-stage 40 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks . Typical Applications for the SEC2440 Battery Charger: Automotive Recreational vehicles Marine Communications sites Battery back-up systems
| Brand | Samlex |
|---|---|
| Model | SEC-2440A |
| Chemistry | Lead Acid |
| Dimensions (LxWxH - metric) | 382 x 230 x 108 |
| Dimensions (LxWxH - inches) | 15.04 x 9.05 x 4.25 |
| Input Frequency (Hz) | 50/60 |
| Input Voltage (VAC) | 100-240 |
| Maximum Current (Ah, mAh) | 40 |
| Operating Temp. Range (oC) | 32-120 |
| Output Banks | 2 |
| Output Voltage - Charging (V) | 28.0 / 28.8 Selectable |
| Output Voltage - Float (V) | 27 |
| Ripple (%) | No |
| Voltage (VDC) | 24 |
| Warranty | 2 Year |
| Weight (lb) | 12.2 |

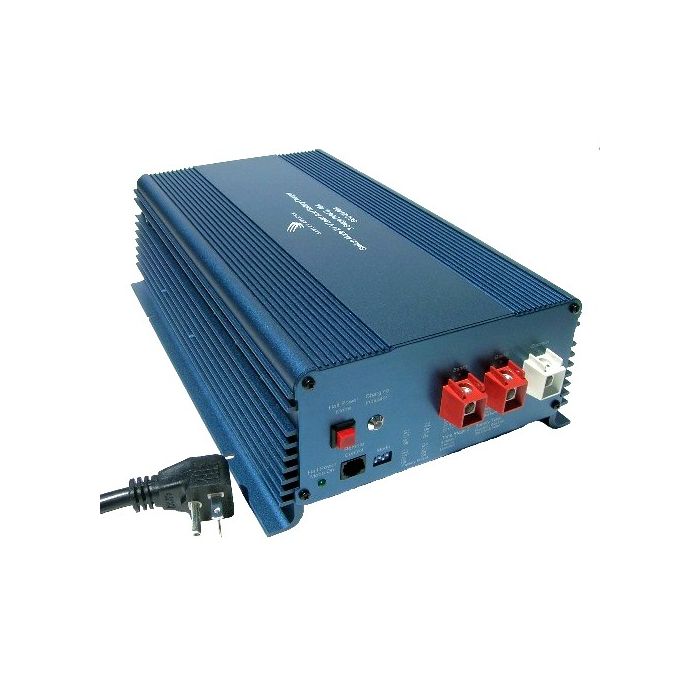

Samlex SEC2440 Battery Charger
