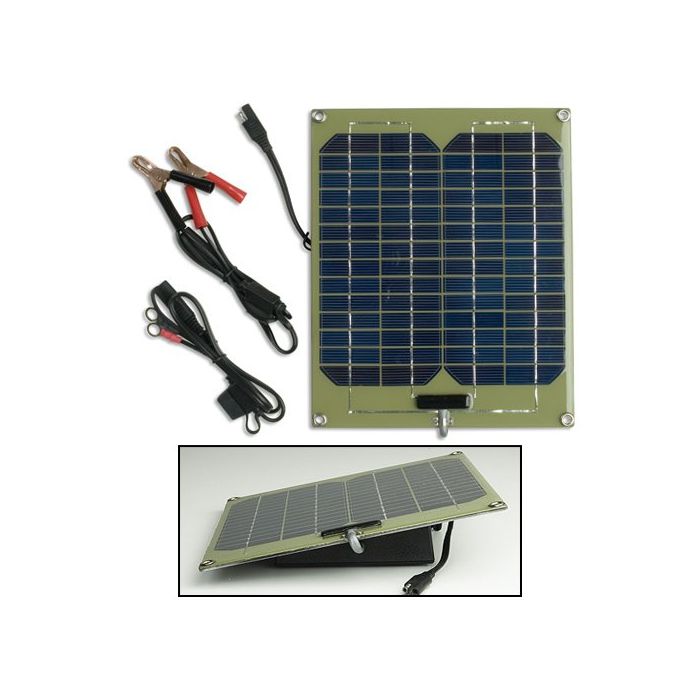

Like all of the SolarPulse models, the SP-24-6 6.3 Watt model utilizes PulseTech's unrivaled solar charging system combined with their patented optimized high frequency pulsing circuit to ensure your batteries will accept, store and release maximum power and last up to five times longer. The ReNew-IT Pulse Technology reverses the naturally occurring process of battery sulfation - the main cause of battery failure. The SP-24-6 mounts at an angle above the circuit box allowing for better solar absorption. This solar panel can either be temporarily placed on the vehicle allowing panel rotation for optimum efficiency or can be mounted permanently.
You can tell if the system is working by a quick glance at the LED indicators. When the green LED is flashing, the battery is being charged and when the green LED is steadily on the battery is fully charged. During and after the charge cycle, the solar panel also supplies energy to the optimized pulse technology circuit to reverse the buildup of energy robbing sulfate deposits on the battery plates - the main cause of battery failure. The flashing red LED indicates that the battery is being pulsed. If no batteries are connected, the battery connection is faulty, or the battery or battery system is measuring less than 22-volts, the red monitor LED will remain steadily on telling you to check the battery connection.
This uniquely designed solar panel is made of highly efficient proven crystalline silicon photovoltaic cells, encapsulated with a clear polyurethane plastic coating (instead of a breakable glass coating), and mounted on a laminated aluminum substrate back plate that is less than 1/4” thick. This makes the panel virtually indestructible, impervious to weather and resistant to damage.
There are four other 12V SolarPulse models available: SP-2 Watt (735X302), a SP-5 Watt (735x305), a SP-6 Watt ERV unit (735X613), and a 25 Watt (735X325). The 6-watt model is ideal for emergency rescue and law enforcement vehicles because it has a unique rectangular solar panel designed to easily mount on any light bar.
|Availability Note:||In Stock|
|Current (A):||275 mAh|
|Dimensions (LxWxH - inches):||9 x 11 x 0.125 (229 x 279 x 3mm)|
|Dimensions Deployed (LxWxH):||same|
|Max Power (W):||6.3|
|Max Power Voltage (Vmpp):||30|
|Open Circuit Voltage (Voc):||No|
