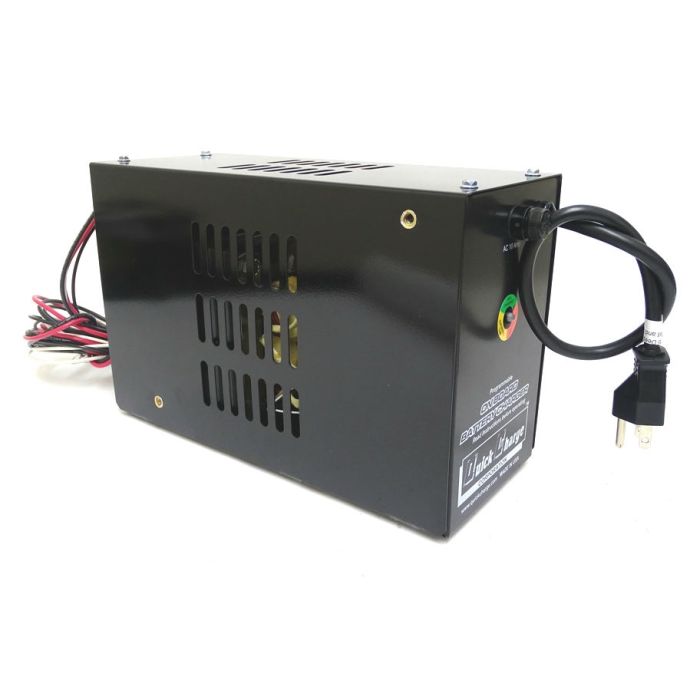

24 Volt 15A Yale & Hyster Pallet Jack Charger PJ2415 by Quick Charge

PJ2415 Pallet Jack Charger Features:

• Designed to replace Yale & Hyster OnBoard Charger
• Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
• Reverse polarity spark free operation
• No moving parts, and an integral design

• Fully automatic with float maintenance
• Return to charge maintenance mode
• Tough metal cast enclosure
• 3 Year warranty & MADE IN USA

Fits the following Hyster Pallet Jacks: W40Z, W45Z, HY4075269, HY1607815, HY2054228, HY2102631, HY8512512, HY2048079, HY2073416, HY4603626, S/N B218N26949L and Up

Fits the following Yale Pallet Jacks: MPB40-E*, 580055473, 582003887, 580034920, 524245865, 580087314, 580029671

Can replace Yale charger 1-24012-04

*When used with 9" MPB40-E can replace charger model: 1-24020-04-hf. Cannot replace this charger on the 7" truck battery; there is not enough space.

Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.

The red and black wire will come with ring lugs. The black and white wires will be bare and go to the ignition switch; you will need to reuse your existing interlock connector.
