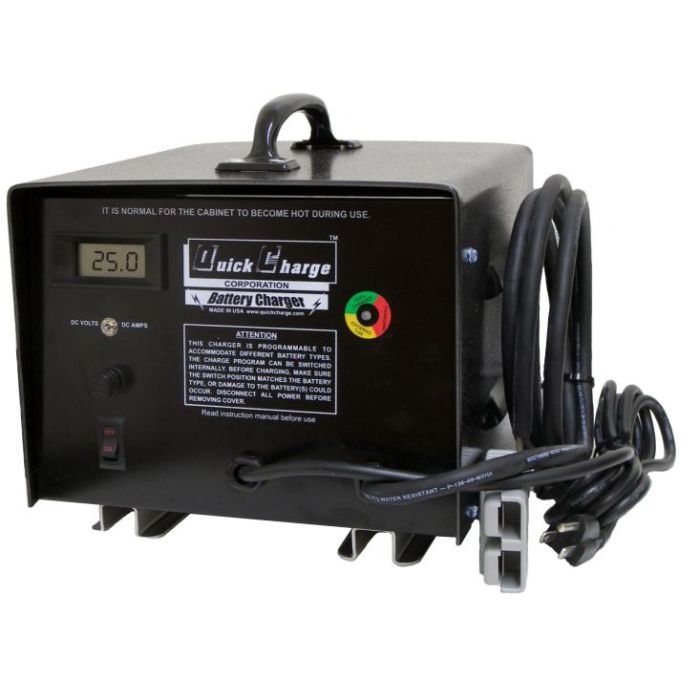

36V 25A Portable Fully Automatic Charger by Quick Charge QP3625
$540.00
Out of stock
SKU
QP3625
Programmable Charger is Perfect for Golf Cars, Floor Scrubbers, RV's, Electric Vehicles, Automotive, and Industrial Applications.
The fully automatic QP3625 Quick Charge Charger is a DC 36 volt 25 Amp unit with a AC110 plug. Replaces Lester part number 07710. This charger can be made with the specific DC plug you may require (i.e. 07710-04 correlates to the SB175 Grey DC connector). Or you can purchase a pigtail adapter to convert the SB connector on the charger to a Crow Foot, EZGO "D" or TXT style plug, or different size and color of SB plug.
- The peak charge voltage on the wet cell deep cycle setting is 2.55 volts per cell.
- The peak on the AGM setting is 2.45 volts per cell.
- The peak on the gel/starting battery setting is 2.3 volts per cell.
- Uses 15 amp AC
- Target battery size is less than 320 Amp hour.
| Brand | Quick Charge |
|---|---|
| Model | QP3625 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 36 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 41.4 / 44.1 / 45.9 |
| Output Voltage - Float (V) | 39.6 / 40.7 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 254 x 279 x 216 |
| Weight (lb) | 32 |
| Dimensions (LxWxH - inches) | 10.0 x 11.0 x 8.5 |
