BP Solar 12V 5W Solar Panel
$85.00
Out of stock
SKU
BPSX-5M

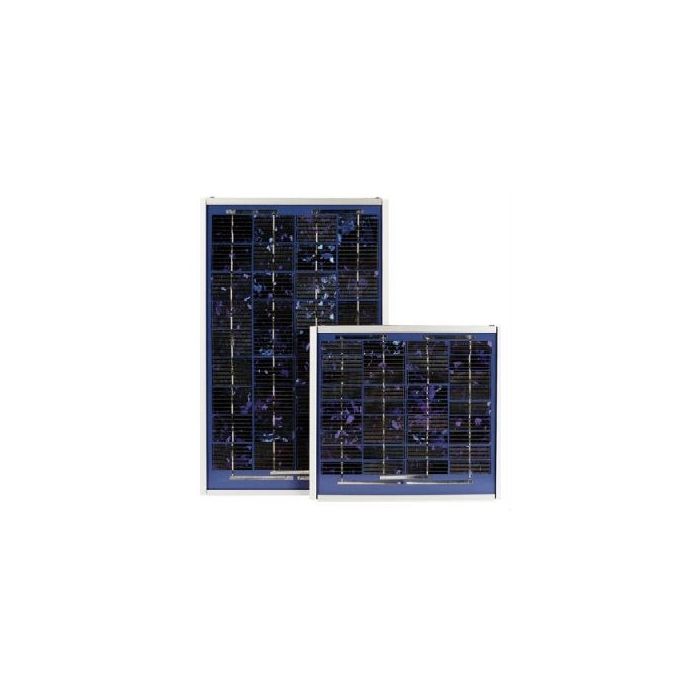

Comes with BP Solar's multimount aluminum frame (10W & 5W pictured)
The smallest of BP Solar's SX module series, BP SX 5 photovoltaic modules operate DC loads with small to moderate energy requirements. With 36 multicrystalline cells in series, they charge 12V batteries efficiently in virtually any climate. Typical commercial applications of these modules, which generate nominal maximum power of 4.5 watts include remote telemetry, instrumentation systems, security sensors, and signals.
| Brand | BP Solar |
|---|---|
| Model | BPSX-5M |
| Composition | Poly Crystalline |
| Nominal Voltage | 12 |
| Max AC Current (A) | 0.27 |
| Dimensions (LxWxH - inches) | 10.6 x 9.7 x 1.34 |
| Dimensions Deployed (LxWxH) | NA |
| Max Power (W) | 4.5 |
| Max Power Voltage (Vmpp) | 16.5 Vmpp |
| Open Circuit Voltage (Voc) | 20.5 |
| Warranty | 2 Yr / 12 Yr |
| Weight (lb) | 3 |
