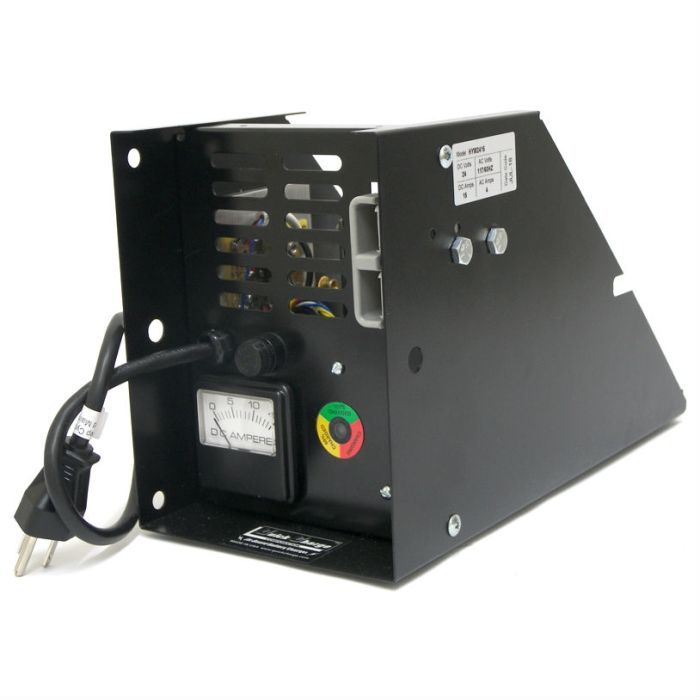

HYW2415 24V 15A Electric Pallet Truck Charger for Yale, Hyster, Big Joe and Cushman by Quick Charge
Quick Charge's HYW2415 Fits a wide selection of Yale, Hyster, Big Joe and Cushman Pallet Jacks
The HYW2415 Quick Charge charger replaces part number OPW24v/15A
HYW2415 Pallet Truck Charger Features:
- Designed to be plug-n-play ready for Yale
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Tough metal cast enclosure
- 3 Year warranty & MADE IN USA
Fits the following YALE Electric Pallet truck charger models using an SB175 Anderson connector: 518128600, 580006679, 580006680, 580010328, 585031100, 585052900, 585056201
Fits the following YALE Pallet Jack charger models using an SB50 Anderson connector: 504872800, 641783600, 643481600, 643881600
Please specify which Anderson connector you require when purchasing. The gray SB175 is the default standard if not specified.
HYSTER numbers: HY0826615, HY2033588, HY3010799, HY0826684, HY2035708, HY2036886, HY2036887, HY826615, HY826684, HY2033588, HY2035708, HY2035709, HY4146880, HY2049616, W40XT, W40XL
BIG JOE numbers: 004967-01, 004967-02, 004956-01, 004976-01
CUSHMAN number: 809256
Other Pallet Jack Charger Models: AAE24-105M1A
Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.
Brand | Quick Charge |
---|---|
Model | HYW2415 |
Chemistry | Lead Acid |
Input Frequency (Hz) | 60 |
Voltage (VDC) | 24 |
Input Voltage (VAC) | 120 |
Output Voltage - Charging (V) | 28 |
Max AC Current (A) | 4 |
Output Voltage - Float (V) | 27 |
Output Banks | 1 |
Max DC Current (A) | 15 |
Operating Temp. Range (oC) | 32-120 |
Warranty | 3 Year |
Dimensions (LxWxH - metric) | 298 x 140 x 178 |
Weight (lb) | 19 |
Dimensions (LxWxH - inches) | 11.75 x 5.5 x 7 |
