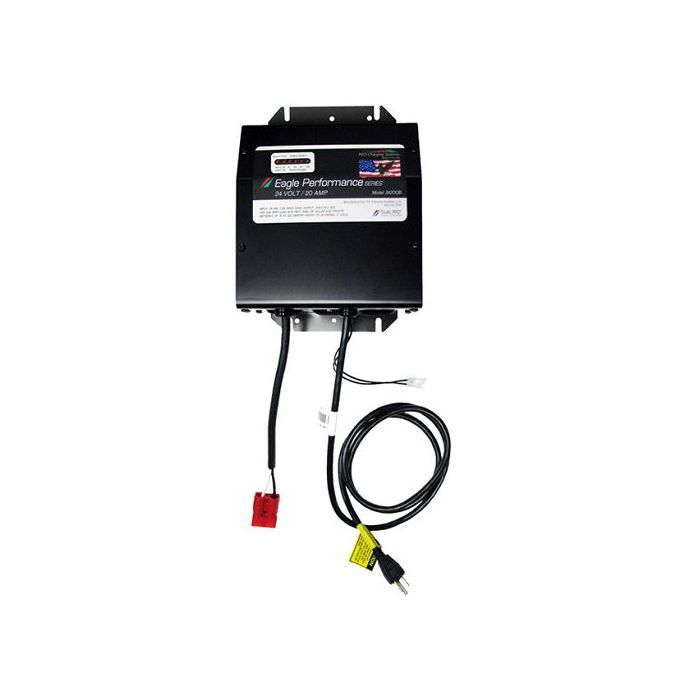

i2425-OBRM Pro Charging Systems Chargeri2425-OBRM Pro Charging Systems Charger
Move your mouse over image or click to enlarge

i2425-OBRM by Dual Pro Gen 1 JLG ES Series Scissor Lift Charger

Quick Overview

Drop-in ready ultra smart charger for ES Series Generation 1 JLG Scissor Lift. Models: 1930ES, 2030ES, 2630ES, 2646ES, 3246ES (please match Serial number). JLG Trailer Boom Lifts: T350, T500J. The advanced i2425OBRM Delta Volt equipped plug-n-play charger is a 24 volt 25 amp charger made by Pro Charging Systems.


  • Availability

    In Stock

  • Product Brand

    Dual Pro

  • Model Number

    i2425-OBRM

  • Voltage (VDC)

    24

  • Max DC Current (A)

    25

  • Warranty

    18 Month

$432.17
ADD TO CART

Eagle Performance Series chargers are specially designed for use in the industrial and electric vehicle markets. With over 18 years of experience in manufacturing, the USA made Pro Charging Systems chargers are known as THE name in advanced microprocessor controlled charging technologies. The new intuitive Delta Volt technology is surpassed by none in the industry and represents a leap forward in charging abilities. Your batteries will appreciate individualized treatment and will last longer.

The Dual Pro Eagles series chargers provide a very fast recharge time, reaching absorption levels in virtually the same amount of time as their fastest competitors. They then take batteries to a “finishing” level while competitors have already terminated their charge profile or ended in a float stage. This added step along with the proprietary charge algorithm leave your batteries with a higher specific gravity per cell and an overall higher state of charge.

Generation 1 ES Series Lifts Serial No.

  • USA built units prior to serial number 0200135154
  • Belgium built units prior to serial number 1200004293


The OEM charger part number for the JLG scissor lift model is 0400218 for the USA made charger. The original charger P/N for the JLG Trailer Mounted Boom Lift is 0400164.

JLG i2425-OBRM Charger Features:

  • Automatically detects and configures for battery type
  • Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
  • Reverse polarity spark free operation
  • Exclusive temperature compensation
  • Fully automatic with float maintenance
  • Return to charge maintenance mode
  • Exclusive on board diagnostics
  • 18 month warranty


This UL 1564L listed battery charger is perfect for fleet operators needing to track and monitor employee operations. The exclusive on board diagnostics tool records the last 83 charge profiles and will assist in determining if there is a battery issue or personnel issue such as prematurely taking the vehicle off the charger before being fully charged.

Product Specs
Availability Note: In Stock
Brand: Dual Pro
Model: i2425-OBRM
Chemistry: Lead Acid
Input Frequency (Hz): 60
Voltage (VDC): 24
Input Voltage (VAC): 120
Output Voltage - Charging (V): 28
Max AC Current (A): N/A
Output Voltage - Float (V): 27 - Shuts Off
Output Banks: 1
Max DC Current (A): 25
Ripple (%): No
Operating Temp. Range (oC): 32-115
Warranty: 18 Month
Dimensions (LxWxH - metric): 254 x 216 x 147
Weight (lb): 19
Dimensions (LxWxH - inches): 10 x 8.5 x 5.8
