JAC2036 Golf Cart Charger w/ SB50
Move your mouse over image or click to enlarge

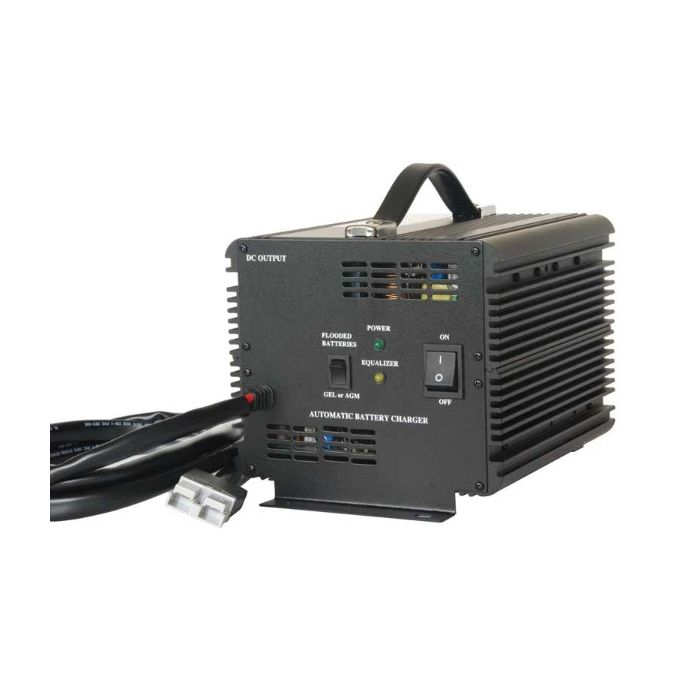

JAC2036 Golf Cart Charger w/ SB50

Quick Overview

36V 20 Ah Japlar Schauer portable golf cart charger
  • Availability

    In Stock

  • Product Brand

    Schauer

  • Model Number

    JAC2036-G

  • Voltage (VDC)

    36

  • Max DC Current (A)

    20

  • Warranty

    2 Year

$289.95
ADD TO CART
This is a durable, aluminum cased unit. Typical applications include golf carts , smaller forklifts, scissor lifts, industrial carts and applications. They are excellent for use on deep cycle batteries . The 36v golf cart charger is selectable for flooded or sealed lead acid battery types, is fused on the input and output sides, and has flanges for mounting. The JAC2036 Schauer golf cart charger features an auto-sensing universal input from 100 to 240 VAC, and is rated for a 100% duty cycle. This unit comes with the industry standard 50 amp Anderson SB50 connector. Additional connectors are listed below.
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC2036-G
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 36
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 44.6 or 43.2
Max AC Current (A): N/A
Output Voltage - Float (V): 40.2
Output Banks: 1
Max DC Current (A): 20
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 241 x 178 x 171
Weight (lb): 10
Dimensions (LxWxH - inches): 9.5 x 7.0 x 6.75
