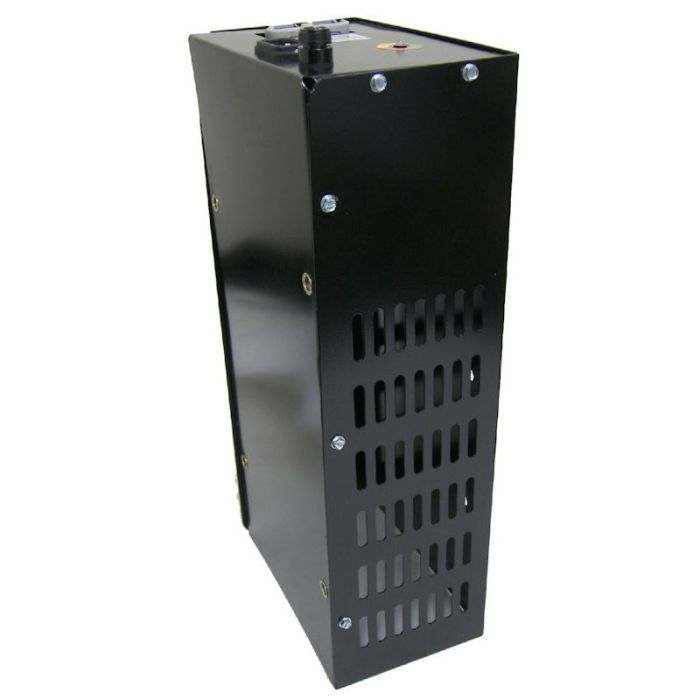

OB2425GNBII 24V 25A Top Facing On-Board Charger by Quick Charge
Very similar to the OB2425QSVR, this GNBII has a flush mount SB175 grey connector and AC receptacle vs. having an SB connector on a short pigtail with 6ft corded AC plug. This on-board 24 Volt 25 Amp charger is a slim fitting charger designed to work inside the battery tray/case. This charger can be used as a direct replacement for batteries in the below case sizes from 150Ah to 395Ah (20hr).
Fits the following battery case sizes:
These battery cases can be found on several electric pallet jacks, but not limited to the following: Caterpillar 2WPL4500 and WP4500, Mitsubishi fork truck PMW23N, Jungheinrich EJE120 older models, Toyota 7HBW23, and Yale MPW050EN24T2736.
It can replace the following chargers:
The OB2425GNBII is an American made charger made by Quick Charge in OK and comes with a 3 year manufacturer warranty.
If you have a Colt A15124-D3 or A15124-E3 or A15124-G3 this charger can be programmed to match those charge profiles. The A15124-F3 is the default setting for flooded and AGM battery types.
Brand | Quick Charge |
---|---|
Model | GNBII2425 (OB2425GNBII) |
Chemistry | Lead Acid |
Input Frequency (Hz) | 60 |
Voltage (VDC) | 24 |
Input Voltage (VAC) | 115 |
Output Voltage - Charging (V) | 28 |
Max AC Current (A) | 8 |
Output Voltage - Float (V) | 27 |
Output Banks | 1 |
Max DC Current (A) | 25 |
Warranty | 3 Year |
Dimensions (LxWxH - metric) | 432 x 181 x 121 |
Dimensions (LxWxH - inches) | 17 x 7.125 x 4.75 |
