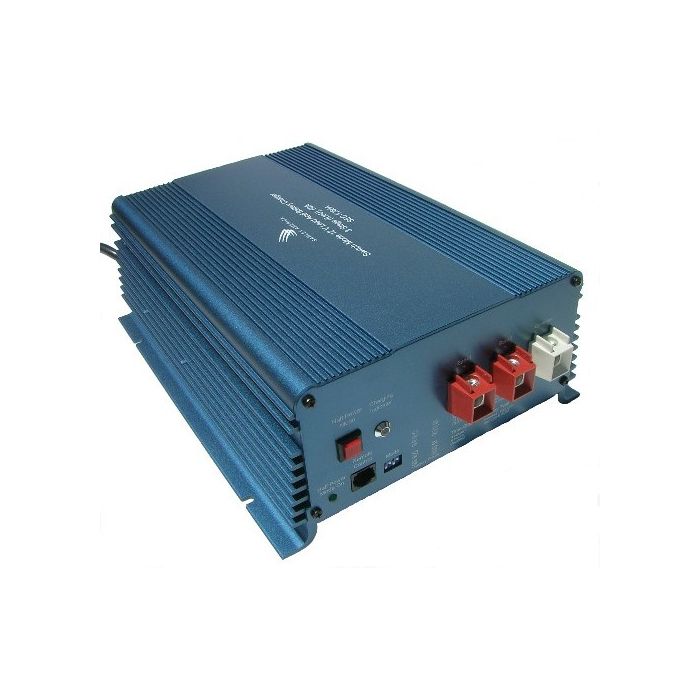

Samlex SEC1260 Battery Charger
$999.00
In stock
SKU
SEC1260
12 volt 60 amp Samlex 2 bank, 3 stage battery charger
This advanced fully automatic three-stage 60 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks. Typical Applications for the SEC1260 Battery Charger: Automotive Recreational vehicles Marine Communications sites Battery back-up systems
Brand | Samlex |
---|---|
Model | SEC1260 |
Chemistry | Lead Acid |
Input Frequency (Hz) | 50/60 |
Voltage (VDC) | 12 |
Input Voltage (VAC) | 100-240 |
Output Voltage - Charging (V) | 14.0 / 14.4 Selectable |
Output Voltage - Float (V) | 13.5 |
Output Banks | 2 |
Max DC Current (A) | 60 |
Operating Temp. Range (oC) | 32-120 |
Warranty | 2 Year |
Dimensions (LxWxH - metric) | 330 x 230 x 108 |
Weight (lb) | 8.8 |
Dimensions (LxWxH - inches) | 12.99 x 9.05 x 4.25 |
