Samlex SEC1280 Battery ChargerSamlex SEC1280 Battery Charger
Move your mouse over image or click to enlarge

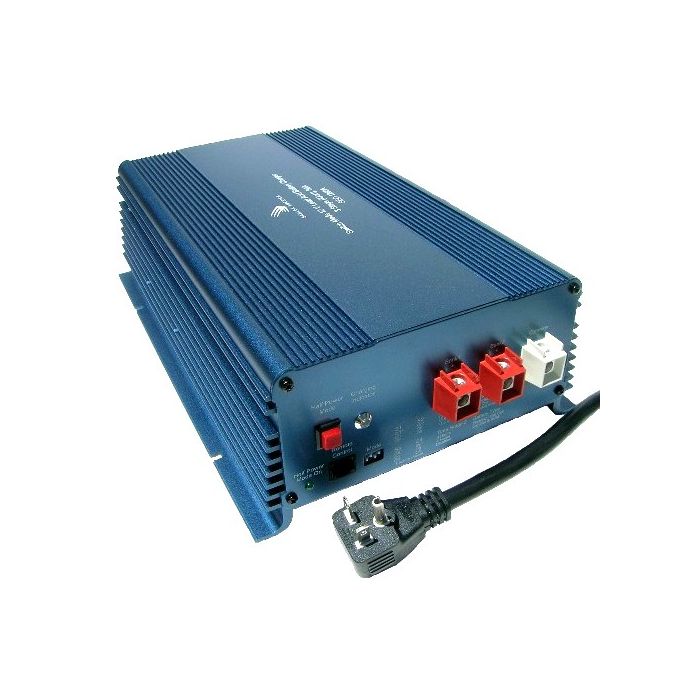

Samlex SEC1280 Battery Charger

Quick Overview

12 volt 80 amp Samlex 2 bank, 3 stage battery charger
  • Availability

    Out of Stock

  • Availability Note

    ETA: None

  • Product Brand

    Samlex

  • Model Number

    SEC1280

  • Voltage (VDC)

    12

  • Max DC Current (A)

    80

  • Warranty

    2 Year

$460.00
ADD TO CART

Out of Stock

This advanced fully automatic three-stage 80 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell ) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload, short-circuit and over-temperature protection. The unit allows charging of up-to 2 separate battery banks . Typical Applications for the SEC1280 Battery Charger: Automotive Recreational vehicles Marine Communications sites Battery back-up systems
Product Specs
Availability Note: ETA: None
Brand: Samlex
Model: SEC1280
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 12
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 14.0 / 14.4 Selectable
Max AC Current (A): N/A
Output Voltage - Float (V): 13.5
Output Banks: 2
Max DC Current (A): 80
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 382 x 230 x 108
Weight (lb): 12.2
Dimensions (LxWxH - inches): 15.04 x 9.05 x 4.25
