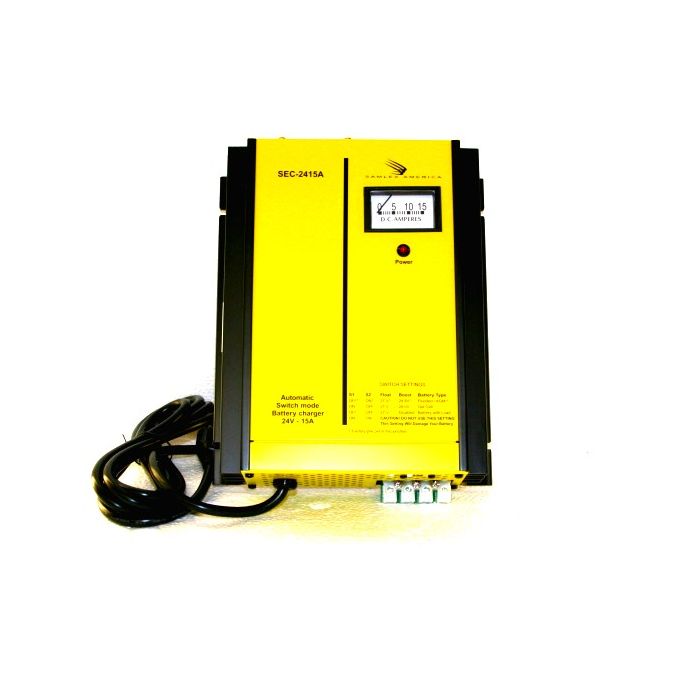

Samlex SEC2415 Battery Charger

Quick Overview

24 volt 15 amp Samlex 3 bank, 3 stage battery charger
  • Availability

    Out of Stock

  • Product Brand

    Samlex

  • Model Number

    SEC2415

  • Voltage (VDC)

    24

  • Max DC Current (A)

    15

  • Warranty

    2 Year

$208.00
ADD TO CART

Out of Stock

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 24 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks. Typical Applications for the SEC2415 Battery Charger: Automotive Recreational vehicles Marine Communications sites Battery back-up systems
Product Specs
Availability Note: Out of stock
Brand: Samlex
Model: SEC2415
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 24
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 28.0 / 28.8 Selectable
Max AC Current (A): N/A
Output Voltage - Float (V): 27
Output Banks: 3
Max DC Current (A): 15
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 274 x 213 x 84
Weight (lb): 6.4
Dimensions (LxWxH - inches): 10.8 x 8.4 x 3.3
