Schauer 24 Volt 20 Amp Smart Battery Charger - JAC2024H
Move your mouse over image or click to enlarge

Schauer 24 Volt 20 Amp Smart Battery Charger - JAC2024H

Quick Overview

On-board / Mountable Industrial Grade 3 Stage Charger w/SB50 Grey Connector
  • Availability

    In Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    2 Year

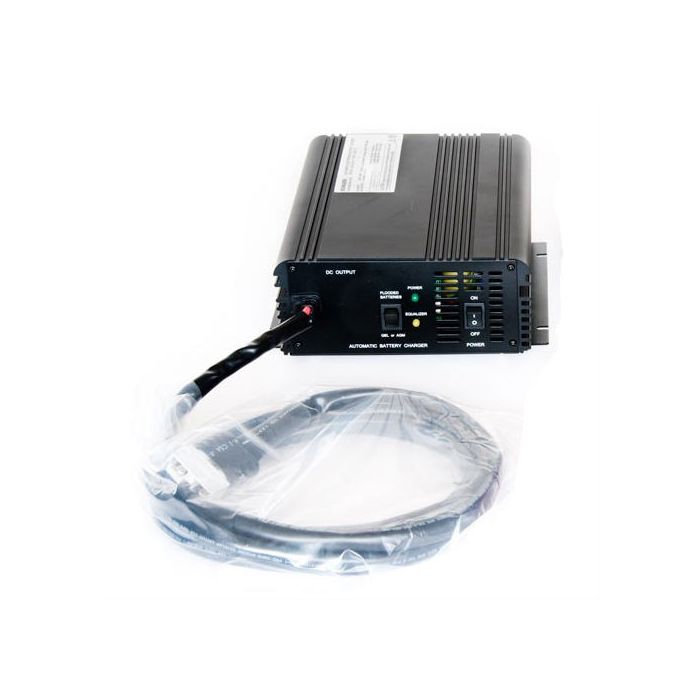

This is a durable 24V 20A, aluminum cased unit. Typical applications include floor scrubbers , smaller lift trucks, scissor lifts, industrial carts and applications. They are excellent for use on deep cycle batteries . The charger allows for a selection between flooded or sealed lead acid battery types, is fused on the input and output sides, and has flanges for mounting. The JAC2024 features an auto-sensing universal input from 100 to 240 VAC, and is rated for a 100% duty cycle. This unit comes with the industry standard 50 amp Anderson SB50 grey connector.
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC2024H
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 24
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 29.7 or 28.8
Max AC Current (A): No
Output Voltage - Float (V): 26.8
Output Banks: 1
Max DC Current (A): 20
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 267 x 210 x 86
Weight (lb): 8
Dimensions (LxWxH - inches): 10.5 x 8.25 x 3.40
