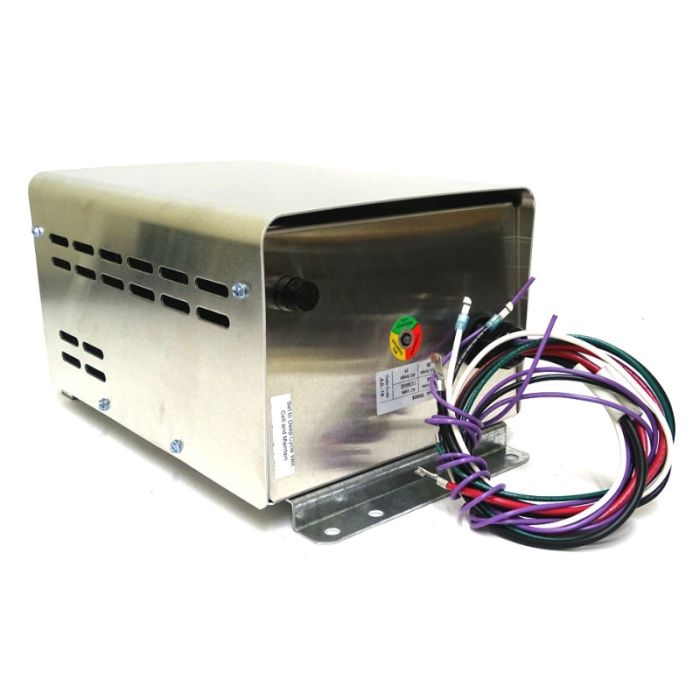

Taylor Dunn 79-303-15, 79-303-40 Charger by Quick Charge TD3625
The 36 Volt 25Ah Quick Charge TD3625 Direct OEM Replacement Battery Charger for Taylor Dunn charger 79-303-15, 79-303-40/41. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
TD3625 Taylor Dunn Replacement Charger Features:
- Designed to replace 79-303-15, 79-305-05 OnBoard Charger
- Signet HB & HBS models 79-303-41, 79-303-40
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- Fully automatic with float maintenance
- No moving parts, and an integral design
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- 3 Year warranty & MADE IN USA
These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge TD3625 On Board charger is made specifically for Taylor Dunn personnel carriers and haulers. It is worthy to note that some TD part numbers append the letter 'A' to the end: 79-303-15A.
The old Quick Charge Carts Part part number was TDET36v/25 and an equivalent Lester number is 22740 and 07460.
| Brand | Quick Charge |
|---|---|
| Model | TD3625 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 36 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 42 |
| Max AC Current (A) | 14 |
| Output Voltage - Float (V) | 40.5 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 330 x 203 x 165 |
| Weight (lb) | 35.8 |
| Dimensions (LxWxH - inches) | 13 x 8.0 x 6.5 |
