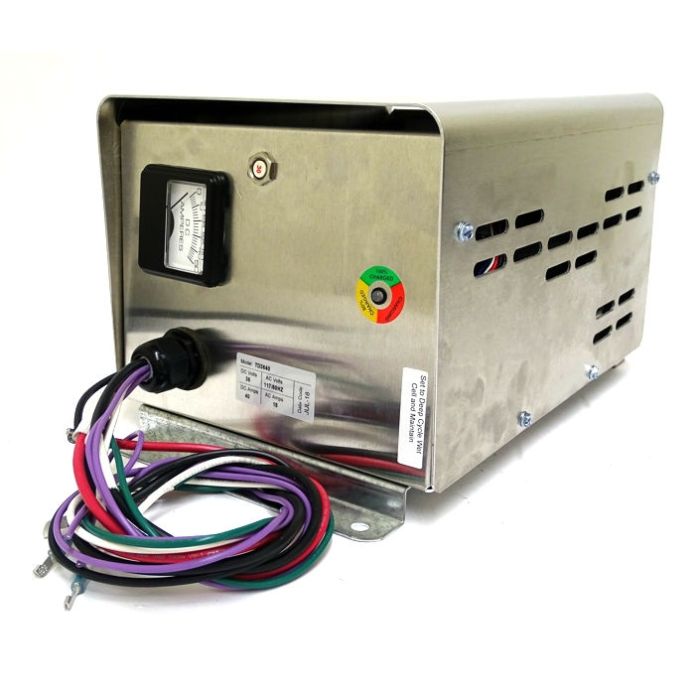

Taylor Dunn 79-306-25 and 79-303-20 Charger by Quick Charge TD3640

$678.00
In stock
SKU
TD3640

The 36 Volt 40 Amp Quick Charge TD3640 Direct OEM Replacement Battery Charger for Taylor Dunn chargers 79-303-20, 79-306-25. Currently ships directly from manufacturer in about 3 weeks.

TD3640 Taylor Dunn 36V 40A Replacement Charger Features:

  • Designed to replace 79-306-25 OnBoard Charger
  • Designed to replace 79-303-20 OnBoard Charger
  • Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
  • Reverse polarity spark free operation
  • No moving parts, and an integral design
  • Fully automatic with float maintenance
  • Return to charge maintenance mode
  • Near bullet proof: Tough die cast enclosure
  • Built to Last, Not a Throw-Away Model
  • 3 Year warranty & MADE IN USA


These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge TD3625 On Board industrial charger is made specifically for Taylor Dunn personnel carriers and haulers. Replaces Lester Part No. 22640 and Cushman charger 893032.

More Information
Brand Quick Charge
Model TD3640
Chemistry Lead Acid
Input Frequency (Hz) 60
Voltage (VDC) 36
Input Voltage (VAC) 120
Output Voltage - Charging (V) 43.5
Max AC Current (A) 20
Output Voltage - Float (V) 40.5
Output Banks 1
Max DC Current (A) 40
Operating Temp. Range (oC) 32-120
Warranty 3 Year
Dimensions (LxWxH - metric) 330 x 203 x 184
Weight (lb) 34
Dimensions (LxWxH - inches) 13 x 8.0 x 7.25
