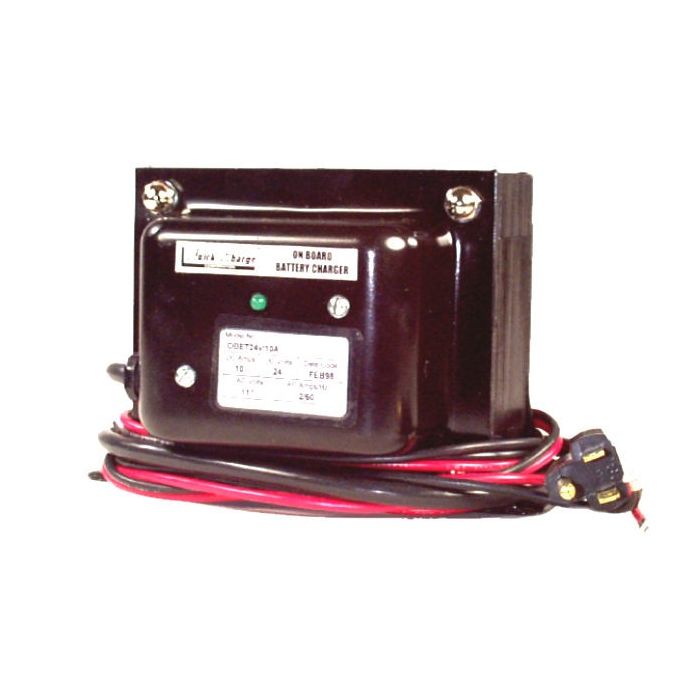

24V 10Ah On Board Quick Charge Battery Charger
$298.00
Out of stock
SKU
OB2410
A tough die cast Bullet Proof OnBoard Charger; mounts in any direction.
Product Features
- Small & Compact
- Fits Slim Scissors, mounts in any direction
- Charge Gel, AGM, Starting, and Wet Deep Cycle Batteries
- Vibration Resistant
- Reverse Polarity Protected
- Short Circuit Protected
- No moving parts, and an integral design
- Rugged Construction
- Totally enclosed to resist the effects of water, dirt, and a harsh environment; Pressure washer proof
- Near bullet proof: Tough die cast enclosure
- Made in U.S.A.
This onboard charger is designed to take keep up with the demands of a construction site. It comes with 24” 3 prong AC cord, and 6’ color coded DC leads with 3/8” ring terminals
(OBAE) GAS & FLOAT: After gassing to 2.55 volts per cell, battery is dropped into a low float mode of 2.26 vpc.
Used in these applications: Scissor Lifts, Floor Scrubbers, Engine Standby Generators, Railroads, Pallet Jacks, Electric Vehicles, RV's, Oil field, Mining
These units are built to order. The manufacturer currently estimates 1-3 weeks build time.
| Availability Note | 10-14 Day Build Time |
|---|---|
| Brand | Quick Charge |
| Model | OB2410 (OBAE-2410) |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 29.4V AGM / 30.6V Wet / 27.6V Starting & Gel |
| Output Voltage - Float (V) | 27.12V AGM / 26.4V Wet |
| Output Banks | 1 |
| Max DC Current (A) | 10 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 178 x 165 x 114 |
| Weight (lb) | 17 |
| Dimensions (LxWxH - inches) | 7.0 x 6.5 x 4.5 |
