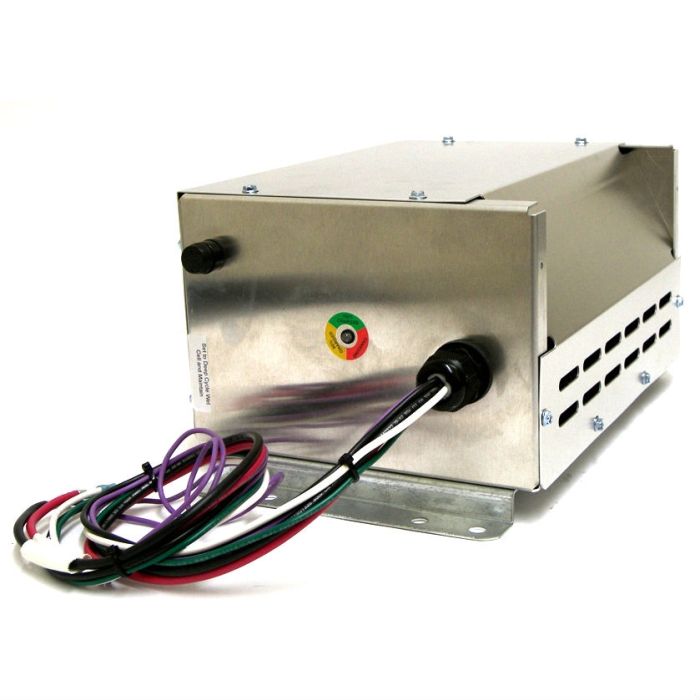

Taylor Dunn 79-301-05 Charger by Quick Charge TD2425SC
The 24 Volt 25Ah Quick Charge TD2425SC Direct OEM Replacement Battery Charger for Taylor Dunn charger 79-301-05 and 79-303-05A. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
Does your charger look rectangular with no cutout or slant that goes the length of the charger on the top right hand side? Then you can use this charger or the one found here.
TD2425SC Taylor Dunn Replacement Charger Features:
- Designed to replace 79-303-05A OnBoard Charger
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- 3 Year warranty & MADE IN USA
These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge TD2425SC On Board charger is made specifically for Taylor Dunn personnel carriers and haulers. The old Quick Charge part number was TDET24v/25A and an equivalent Lester number is 22730A
| Brand | Quick Charge |
|---|---|
| Model | TD2425SC |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 330 x 203 x 165 |
| Weight (lb) | 27 |
| Dimensions (LxWxH - inches) | 13 x 8.0 x 6.5 |
