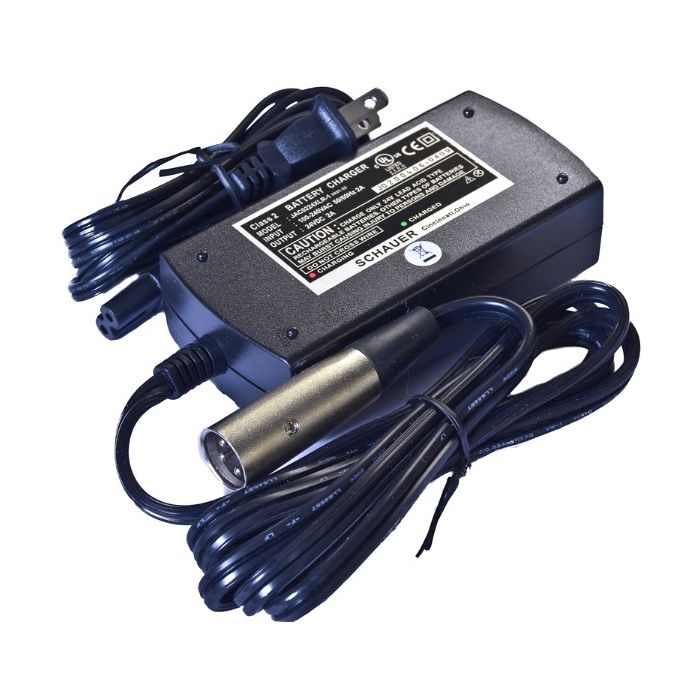

24V Electric Scooter Charger Fits GT, IZIP, Schwinn and Others...
Special Price
$39.95
Regular Price
$48.95
In stock
SKU
JAC0224-XLR
24V 2Ah Charger for BladeZ, Currie, GT, IZIP, Mongoose, Schwinn and others. JAC0224 Comes with 2 year warranty
This e-scooter smart charger uses state-of-the-art technology allowing the JAC0224-XLR to take up 50% less space than comparable chargers all while doubling the warranty period to two years vs. the competitions one year warranty period. This fully automatic 24v electric scooter charger follows the battery impedance to the end of the charge cycle. It can be used on all battery types. The peak charging voltage is 28.8 volts, with a float voltage of 27.6V. It can be safely used on electric scooter batteries & wheelchair batteries.
Electric Scooters that can use the Schauer 24 volt charger with XLR connector include: BladeZ, Currie, GT, IZIP, Mongoose, and Schwinn. See the list below for a complete list by model
Compatible Scooters for this 2Ah Charger
- Bladez XTR Comp 2
- Bladez XTR Comp 450
- Bladez XTR Street 2
- Bladez XTR Street 450
- Bladez XTR-SE 450
- Currie e-ride 16" Folding
- Currie Phat Flyer
- Currie Phat Phantom
- GT Asteroid
- GT KOBRA.08
- GT Mini-E
- GT Shockwave
- GT Trailz
- GT Tsunami
- GT-200 (2005 & Older)
- GT-250
- GT-300
- GT-350
- GT-500
- IZIP Chopper
- IZIP I-300
- IZIP I-350
- IZIP I-500
- Lashout 24 Volt 400 Watt
- Lashout 24 Volt 600 Watt
- Mongoose Cosmic
- Mongoose Fusion
- Mongoose Hornet FS
- Mongoose Impact
- Mongoose M150 (2005 & Older)
- Mongoose M200 (2005 & Older)
- Mongoose M250
- Mongoose M300
- Mongoose M350
- Mongoose M500
- Mongoose mini-e
- Mongoose Rocket FS
- Mongoose Z350
- Pacelite HCF 737
- Schwinn F18
- Schwinn Fly FS
- Schwinn mini-e
- Schwinn Missile FS
- Schwinn New Frontier
- Schwinn S150 (2005 & Older)
- Schwinn S180
- Schwinn S200
- Schwinn S250
- Schwinn S300
- Schwinn S350
- Schwinn S500
- Schwinn X-CEL
- Schwinn Zone 5
- Shoprider Scootie (TE-787NA)
- Tanaka PaveRunner TPB-450EX
| Brand | Schauer |
|---|---|
| Model | JAC0224-XLR |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 90-260 |
| Output Voltage - Charging (V) | 28.8 |
| Output Voltage - Float (V) | 27.6 |
| Output Banks | 1 |
| Max DC Current (A) | 2 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 112 x 61 x 30 |
| Weight (lb) | 1 |
| Dimensions (LxWxH - inches) | 4.4 x 2.4 x 1.2 |
