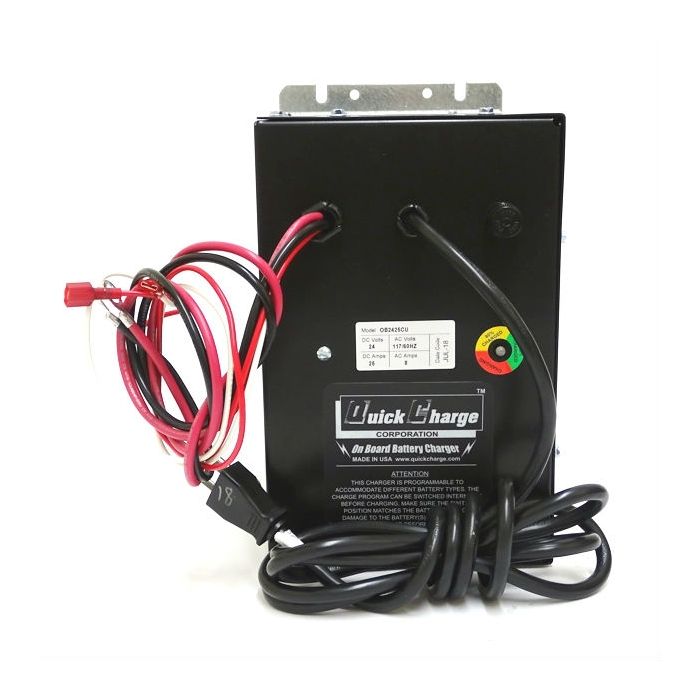

892860 Cushman Personnel Carrier Charger OB2425CU by Quick Charge
$494.95
In stock
SKU
CU2425
The 24 Volt 25Ah Quick Charge CU2425 (formerly OB2425CU) is a Direct OEM Replacement Battery Charger for Cushman charger 892860 and more along with Lester model 16940.
Replaces the following part numbers: 892860, 899320, 898340, 898323, 50PR35 and 24Lc25-8Et Lester charger 16940.
OB2425CU Cushman Charger Features:
- Designed to replace Cushman OnBoard Charger
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- 3 Year warranty & MADE IN USA
These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge OB2425CU On Board charger is made specifically for Cushman personnel carriers and haulers.
| Brand | Quick Charge |
|---|---|
| Model | CU2425 (OB2425CU) |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 7 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 152 x 210 x 279 |
| Weight (lb) | 27 |
| Dimensions (LxWxH - inches) | 6.0 x 8.25 x 11.0 |
