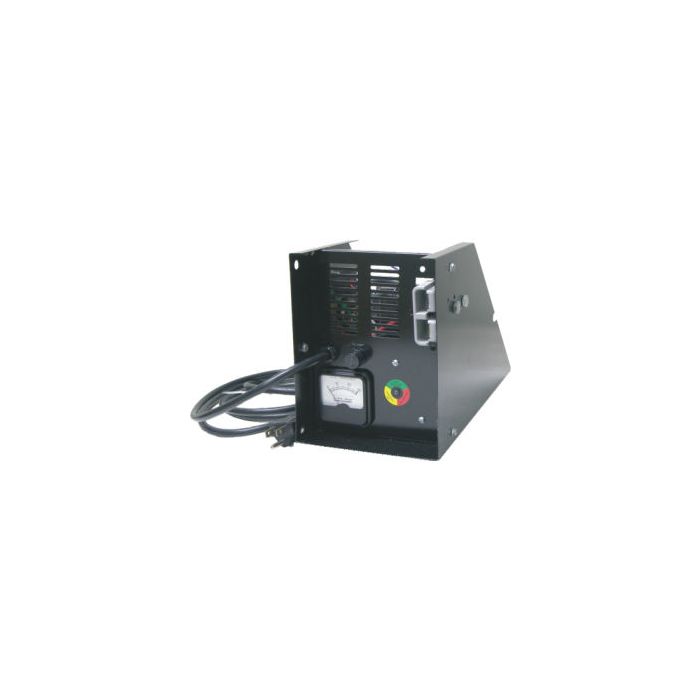

Cushman & Big Joe Pallet Truck Battery Charger OPW24v/15A by Quick Charge
This drop-in ready 24 Volt 15 amp OPW24v/15A Quick Charge electric pallet jack charger is designed to replace the following Cushman and Big Joe chargers: 809256, 004967-01, 004967-02. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
OPW24v/15A Pallet Truck Charger Features:
- Designed to be plug-n-play ready for Cushman & Big Joe
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Tough metal cast enclosure
- 3 Year warranty & MADE IN USA
Fits the following Cushman Electric Pallet truck charger models: 809256
Fits the following Big Joe Pallet Jack charger models 004967-02, 004956-01, 004976-01, 004967-01* (check dims. Does not fit 8.5 x 7.25 x 7.25 model of same part number)
Please specify which Anderson connector you require when purchasing.
Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.
| Brand | Quick Charge |
|---|---|
| Model | OPW24v/15A (HYW2415) |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 4 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 15 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Weight (lb) | 19 |
| Dimensions (LxWxH - inches) | 11.75 x 7 x 5.5 |
