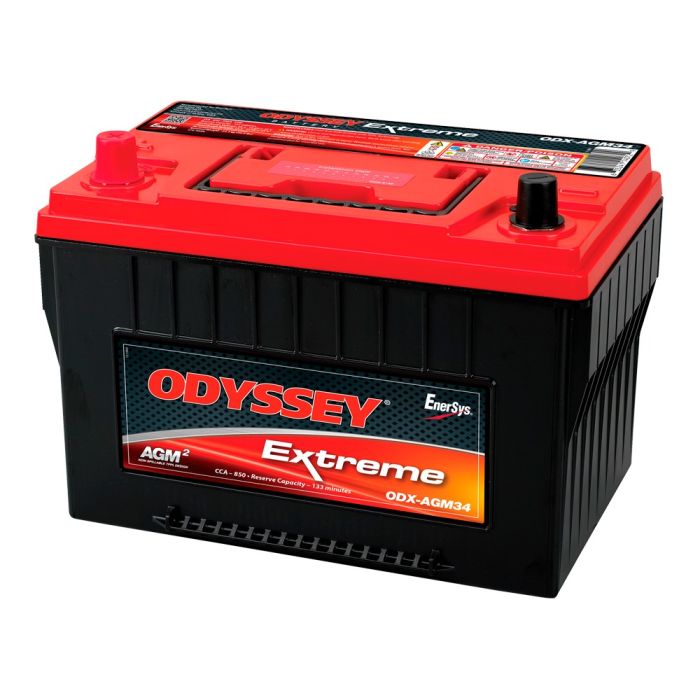

Odyssey ODX-AGM34 850 CCA, 1500 PHCA Extreme Series Battery (34-PC1500)
ODYSSEY ODX-AGM34 AGM batteries deliver the massive starting power, rapid recovery, and amazing deep cycling capability that today’s vehicles demand. The ODX Extreme Series replaces the Odyssey PC1500 part numbers.
This Group 34 AGM battery comes with tin-plated brass SAE automotive top posts with the positive on the right.
Odyssey Extreme Ultra High Performance Pure Lead AGM
The ODX-AGM34 is designed to reduce your overall cost of ownership by delivering superior starting performance and exceptional deep cycle capabilities. Manufactured from 99.997% pure lead in state-of-the-art facilities found in the middle of the country, Odyssey batteries pick up where NorthStar left off.
| Product Specification Highlights |
|---|
| PULSE HOT CRANKING AMPS (PHCA) :: 1500 PCA |
| Whether you drive a luxury SUV or an off roader, Odyssey Extreme Series is king. |
| RESERVE CAPACITY (RC) :: 135 Min RC |
| For comparison, the ever popular Optima Yellow Top has only 120 Min RC |
| CYCLE LIFE |
| Exceptional deep cycling capability of over 900 cycles at 50% depth of discharge; over 400 cycle at 80% depth of discharge. (DOD) |
Whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power – twice the overall power and three times the life of conventional batteries – up to 400 cycles at 80% depth of discharge!
- Proudly Made in Springfield Missouri USA
- Shockproof High Impact Case; Extremely Vibration Resistant
- Perfect For Performance and Start-Stop Technology Applications
- Low Self Discharge Rate, Leak-Proof / Spill Proof
- Crazy Long 48 Month Full Replacement Warranty
- Typical Service Life 5 to 12 Years
- Deep Cycle Marvel: Over 400 Cycles to 80% DOD
- Starting Master: High Crank and Quick Starting Every Time
- Faster Recharge Than Conventional Batteries
- Pure Lead AGM Technology Delivers Exceptional Performance
| Brand | Odyssey |
|---|---|
| Model | ODX-AGM34 |
| BCI Group Size | Group 34 |
| Capacity 20Hr (Ah) | 68 |
| Reserve Capacity (RC) | 135 min |
| Cold Cranking Amps (CCA) | 850 |
| Pulse Cranking Amps (PCA) | 1500 |
| Cranking Amps (CA) | 1050 |
| Voltage (V) | 12 |
| Chemistry | AGM - Factory Sealed |
| Warranty | 4 Year |
| Polarity | +++|--- |
| Dimensions (LxWxH - inches) | 10.9 x 6.80 x 7.90 |
| Dimensions (LxWxH - metric) | 277 x 173 x 201 |
| Weight (lb) | 49.5 |
| OEM Replacement | 34-PC1500 |
| Vehicle Type | Make | Model | Year |
|---|---|---|---|
| UTV | ARGO | 1028cc 8x8 XTD | 2014 |
| UTV | ARGO | 1028cc 8x8 XTD | 2015 |
| UTV | ARGO | 1028cc 8x8 XTD | 2016 |
| UTV | ARGO | 1028cc Conquest 8x8 d | 2017 |
| UTV | ARGO | 1028cc Conquest 8x8 XTd | 2017 |
| UTV | ARGO | 1029cc Conquest 8x8 Explorer XTd | 2017 |
| UTV | ARGO | 1050cc Conquest Pro 1050 XT-D | 2019 |
| UTV | ARGO | 750cc 8x8 XTI | 2013 |
| UTV | ARGO | 750cc 8x8 XTI | 2014 |
| UTV | ARGO | 750cc 8x8 XTI | 2015 |
| UTV | ARGO | 750cc 8x8 XTI | 2016 |
| UTV | ARGO | 750cc Conquest 8x8 Explorer XTi | 2017 |
| UTV | ARGO | 750cc Conquest 8x8 i | 2017 |
| UTV | ARGO | 750cc Conquest 8x8 Lineman XTi | 2017 |
| UTV | ARGO | 750cc Conquest 8x8 Outfitter XTi | 2017 |
| UTV | ARGO | 750cc Conquest 8x8 Outfitter Xti-Z | 2017 |
| UTV | ARGO | 750cc Conquest 8x8 XTi | 2017 |
| UTV | ARGO | 750cc Outfitter | 2016 |
| UTV | ARGO | 800cc Conquest 800 Outfitter | 2019 |
| UTV | ARGO | 800cc Conquest Pro 800 XT | 2019 |
| UTV | ARGO | 800cc Conquest Pro 800 XT-L | 2019 |
| UTV | ARGO | 800cc Conquest Pro 800 XT-X | 2019 |
