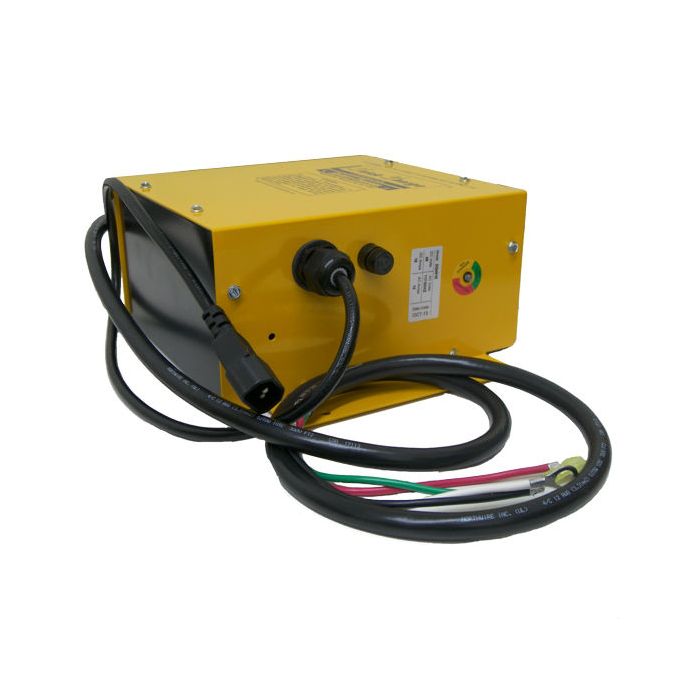

Quick Charge DQ3620 Charger Replaces Delta Q 912-3600
$534.95
In stock
SKU
DQ3620
This drop-in ready 36 Volt 20 amp DQ3620 Quick Charge charger is designed to replace the Delta Q Quiq charger: 912-3600. Ships directly from manufacturer in about 2 weeks.
Delta Q Quiq Charger Replacement Features:
- Designed to be plug-n-play ready for Delta Q
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Tough metal cast enclosure
- 3 Year warranty & MADE IN USA
Delta Q chargers are found in Cushman, Taylor Dunn, Columbia ParCar and many other electric vehicles.
Choose from 4 different charge profiles with this programmable on-board charger. Compatible with most any lead acid, sealed lead acid AGM, or sealed lead acid GEL battery requirements. The Select-A-Charge is temperature compensating, and features an LED indicator for charger status. Best of all, they are made in the USA, with a 3 year warranty. These are built to order by the manufacturer.
| Availability Note | 10-14 Day Build Time |
|---|---|
| Brand | Quick Charge |
| Model | DQ3620 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 36 |
| Input Voltage (VAC) | 120 |
| Output Banks | 1 |
| Max DC Current (A) | 20 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 279 x 246 x 109 |
| Weight (lb) | 12 |
| Dimensions (LxWxH - inches) | 11 x 9.7 x 4.3 |
