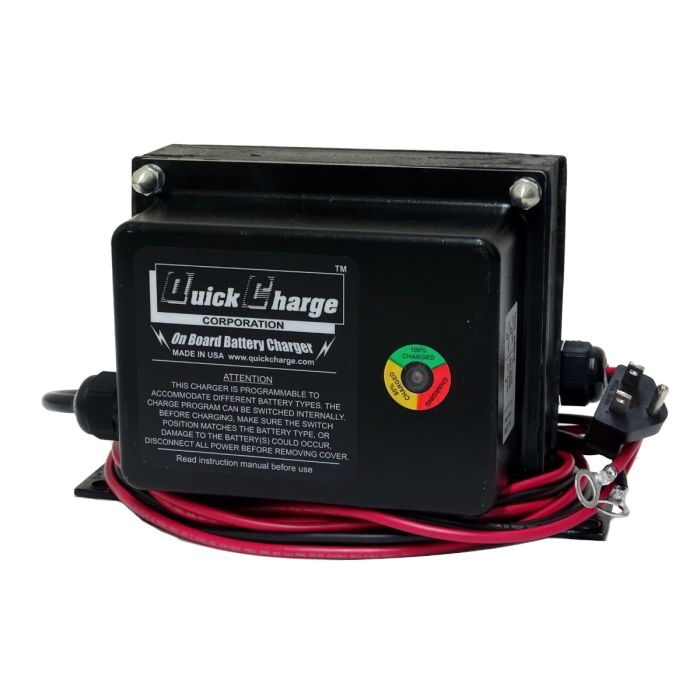

Quick Charge OB2425 Charger for JLG Maxquip MX19; JLG E2 & E3 Series Scissor Lifts
The 24 Volt 25Ah Quick Charge OB2425 Direct OEM Replacement Battery Charger for JLG E2 & E3 series scissor lifts including 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, 3246E2, 1532E3, 1932E3, 2033E3, 2046E3, 2646E3, 2658E3. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
OB2425 JLG Charger Features:
- Designed to replace JLG OnBoard Charger
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- 3 Year warranty & MADE IN USA
Fits the following Models: JLG Scissor Lifts 1532E2, 1932E2, 2032E2, 2632E2, 2646E2, 3246E2, 1532E3, 1932E3, 2033E3, 2046E3, 2646E3, 2658E3, MX19, 7040429 JLG OEM Delta-Q Charger 0400170, 0400178, 2901844, 0400220, 0400238, 0400218, 0400177, 0400204
The OB2425 can also be used for other applications that require a 24 volt 25 amp charger, however you may need to drill a bolt hole in the mounting plate to align with your existing mount. No holes need be drilled for the above JLG models. Can be used to replace the universal Signet model HB600-24B part 7041410.
| Brand | Quick Charge |
|---|---|
| Model | OB2425 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 7 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Ripple (%) | ~ |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 229 x 165 x 152 |
| Weight (lb) | 27 |
| Dimensions (LxWxH - inches) | 9.0 x 6.5 x 6.0 |
