12 Bank 10 Amp Quick Charge Charger
Move your mouse over image or click to enlarge

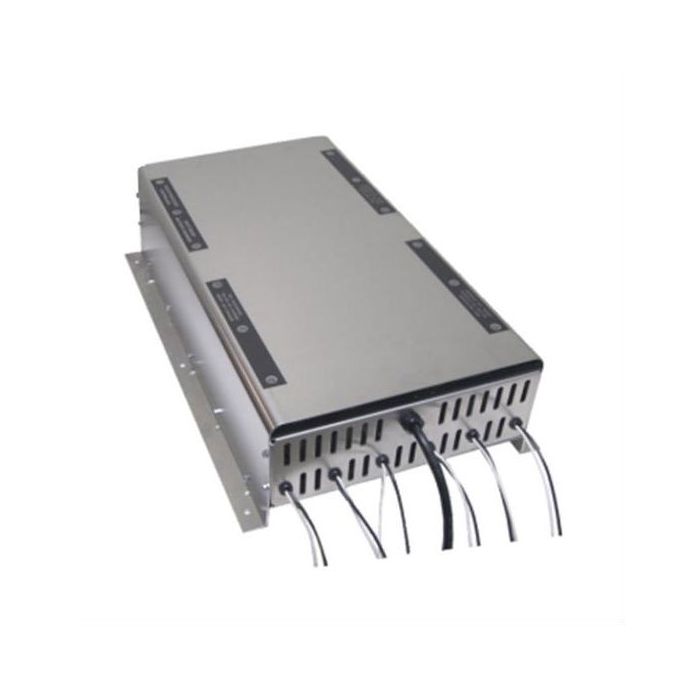

12 Bank 10 Amp Quick Charge Charger

Quick Overview

12 Independent Isolated Circuits @ 10 Amps Each
  • Availability

    In Stock

  • Availability Note

    10-14 Day Build Time

  • Product Brand

    Quick Charge

  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    3 Year

These chargers can be mounted on board equipment, or mounted on a shelf or wall. Each circuit is programmable via internal dip switch to charge deep cycle wet cells, starting wet cells, gels, AGM's, and lithium Ion. Each circuit is current limited, and polarity protected. As an example, they can be connected to each battery of an electric vehicle, and since each battery is charged independent of the other, battery life can increase by at least 25% over a conventional series charger. In another example, you could attach multiple leads to one or more batteries to increase the charge rate in 10 amp multiples. 6 ft AC and DC leads. Warranty is 3 years. Multi Bank chargers are independent isolated circuits that charge multiple batteries individually. Never any over or undercharging. Each circuit has it's own LED to monitor progress. Simply the best way to charge groups of batteries even if operated in a series or parallel configuration. This charger is built to order and will require about 5-8 days build time.
Product Specs
Availability Note: 10-14 Day Build Time
Brand: Quick Charge
Model: MB1210x12
Chemistry: Lead Acid
Input Frequency (Hz): 60
Voltage (VDC): 12
Input Voltage (VAC): 120
Output Voltage - Charging (V): No
Max AC Current (A): N/A
Output Voltage - Float (V): No
Output Banks: 12
Max DC Current (A): 10
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 3 Year
Dimensions (LxWxH - metric): 546 x 349 x 140
Weight (lb): 71
Dimensions (LxWxH - inches): 21.5 x 13.75 x 5.5
