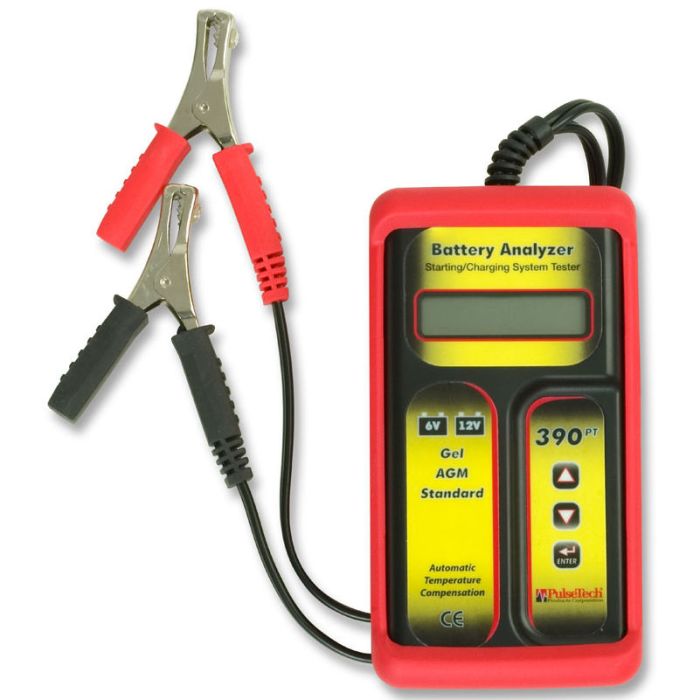

390PT Digital Battery Conductance Analyzer tester
- Buy 2 for $198.00 each and save 22%
The PulseTech 390PT uses patented technology to completely analyse your battery quickly and accurately!
An absolute necessity for your battery shop or maintenance bay, the 390PT uses patented single load, dynamic resistance technology to completely analyze your battery and charging system quickly, safely and accurately. You’ll provide better battery maintenance by locating the 6-Volt and 12-Volt vehicle batteries or 12-Volt and 24-Volt starting systems that require attention while still in the vehicle. Find battery issues before they become problems.
Electrical Characteristics
Rating System: SAE, DIN, EN, IEC, JIS Battery No.
Operation Range: 40 to 2000 CCA (SAE)
Minimum Battery Voltage for Analysis: 1.5V
Voltmeter Range: 1.5V to 30V
Internal Batteries: 1 Each 9 Volt
Fast And Easy To Use
1. Turn off ignition, all accessories and loads. Close all car doors and trunk.
2. Make sure battery terminals are clean. Attach black lead to negative battery terminal and red lead to positive battery terminal.
3. Press up or down arrow indicators and press the side arrow enter key to select the battery test, battery type and battery rating.
4. Battery test results will display one of the following: GOOD & PASS, GOOD & RECHARGE, RECHARGE & RETEST, BAD& REPLACE or BAD CELL & REPLACE
5. Press up or down arrow indicators and side-arrow enter key to select system test.
6. System test results will display one of the following: CRANKING VOLTS NORMAL, CRANKING VOLTS LOW or CRANKING VOLTS NOT DETECTED
7. Subsequent system tests show high, low and normal charging volts at idle and with accessories
| Model | 390PT (741x390) |
|---|---|
| Brand | PulseTech |
| Dimensions (LxWxH - inches) | 7.8” L x 4.5” W x 2.1" H |
| Weight (lb) | 1.4 |
