EZ-GO RXV 48V Charger
Move your mouse over image or click to enlarge

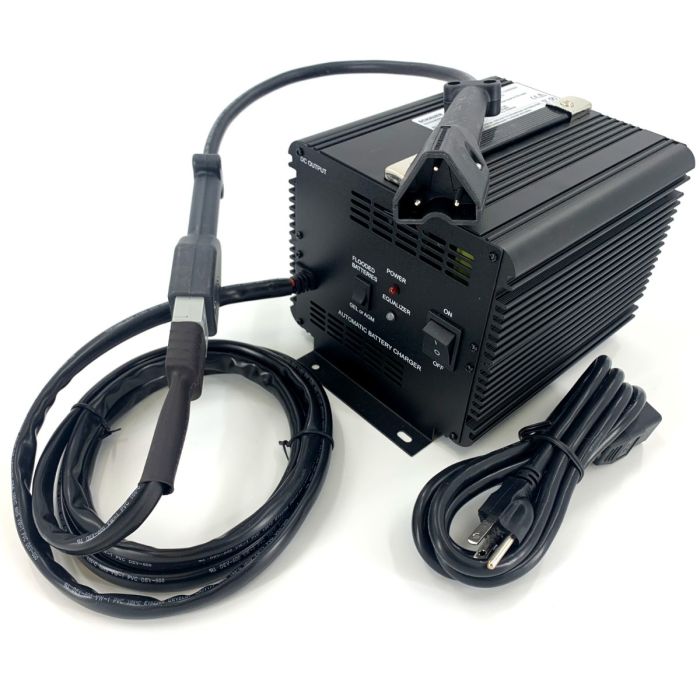

48 Volt EZ-GO charger w/ RXV Connector

Quick Overview

48V 15Ah EZGO RXV replacement charger by Schauer for Delta Q 915-4810.
  • Availability

    In Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    2 Year


This replacement EZ-GO Freedom Electric 48 volt 15 Amp charger can be used with vehicles 2008 to present using the triangular 3-pin RXV style connector. The JAC1548-RXV replaces the Delta Q 915-4810 as well as these older models: 27730-I90, 27730-90, 602089, 607468, BCL1RXV II and 611200.

This replacement 48 volt Schauer Freedom EZGO charger is made of a durable, aluminum cased fused protected housing. Typical applications include golf carts , smaller forklifts, scissor lifts, industrial carts and similar applications. The JAC1548H is excellent for use on deep cycle batteries; both sealed and conventional. The charger can toggle between flooded or sealed lead acid battery types, is fused on the input and output sides, and has flanges for mounting. The JAC1548 features an auto-sensing universal input from 100 to 240 VAC, and is rated for a 100% duty cycle. The Schauer chargers come with detachable connectors allowing them to be used with various applications. This model comes with the RXV connector.

Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC1548-RXV
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 48
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 59.5 or 57.6
Max AC Current (A): N/A
Output Voltage - Float (V): 53.6
Output Banks: 1
Max DC Current (A): 15
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 286 x 178 x 171
Weight (lb): 11
Dimensions (LxWxH - inches): 11.25 x 7.0 x 6.75
