6 Volt Peg Perego Battery IAKB0509 (Original) Green
The green topped IAKB0509 battery is the drop in ready 6 volt 4 or 4.5 amp battery provided by Peg Perego. These batteries can be used in all of the toddler sized Peg Perego 6V powered ride on toys such as Thomas the Tank Engine and the Traffic Police car.

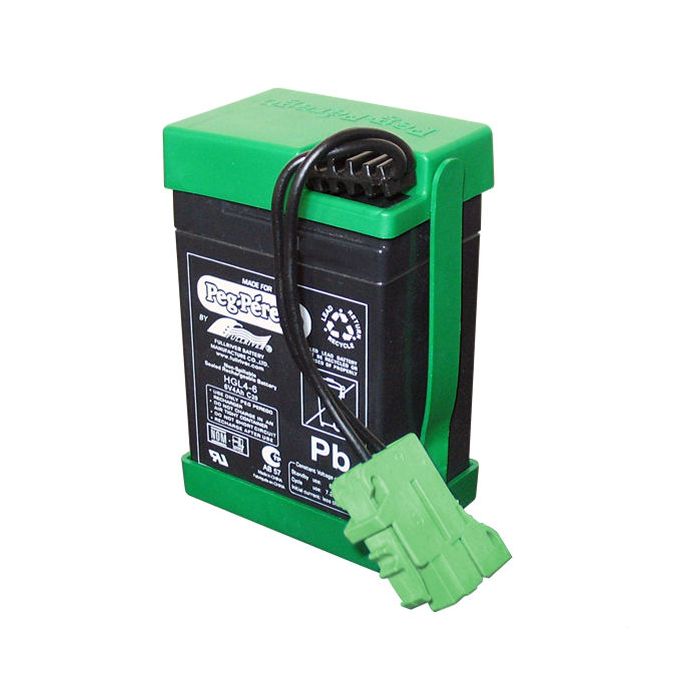

The 509 battery is similar in size to a juice box. It will have a green plastic lid that covers up the terminal connections. Depending on when the battery was purchased and which factory Peg Perego contracted with to manufacture the battery it could have a screw holding the lid to the battery or a white plastic strap encircling the battery to hold it on or possibly a green bottom with green side straps. The current version just has the green top being held on with a white strap.
Over the years they have used several factories to make their batteries. This means the battery you are replacing may have a different part number silk screened on the side and will indicate MADE FOR Peg Perego BY Ritar or Leoch or Full River, for example. Generally, if you were to look below this declaration you will find the factories part number and some text indicating it is a 6V 4Ah or 4.5AH sealed lead acid battery. Some of the factory part numbers used over the years include: 6V4.5AH C20, RT640, DM6-4.5, DMU640. Only the retail box packaging and a white sticker affixed to the top of the battery will indicate the IAKB0509 official part number.
These batteries are a sealed AGM maintenance free battery that will never leak acid. They are safe to use indoors and outdoors. The green tamper proof top helps prevent curious children from playing mechanic directly on the battery terminals.
This 4Ah Peg Perego replacement battery can fit these models:
- BANSHEE (ED1230)
- CORRAL PRINCESS (HP232)
- CYCLONE (ED018)
- FALCON QUAD (ED037)
- MAGNUM PICK UP (D120)
- POLICE CHIEF (POLICEC)
- PRETTY PRINCESS (ED019)
- ROCKY (ED091)
- STAR PRINCESS (ED1026)
- CORRAL SWEETHEART (PONY) (CSPONY)
- CORRAL PONY-YELLOW (ED035)
- FALCON QUAD-GREEN (ED033)
- FIRE RESCUE XL (ED1042)
- JOHN DEERE UTILITY TRACTOR (IGED1064)
- TALKING PRETTY PRINCESS (ED1017)
- THOMAS TRAIN (THOMAST)
- TOOL EXPRESS (TOOLEXP)
- TRAFFIC POLICE (ED005)
| Model | IAKB0509 |
|---|---|
| Brand | Peg Perego |
| Capacity 20Hr (Ah) | 4 |
| Voltage (V) | 6 |
| Terminal | F1 |
| Dimensions (LxWxH - inches) | 2.76 x 1.85 x 4.17 |
| Dimensions (LxWxH - metric) | 70 x 47 x 106 |
| Weight (lb) | 1.83 |
| Chemistry | AGM - Factory Sealed |
| Warranty | 6 Mo. Replacement |
