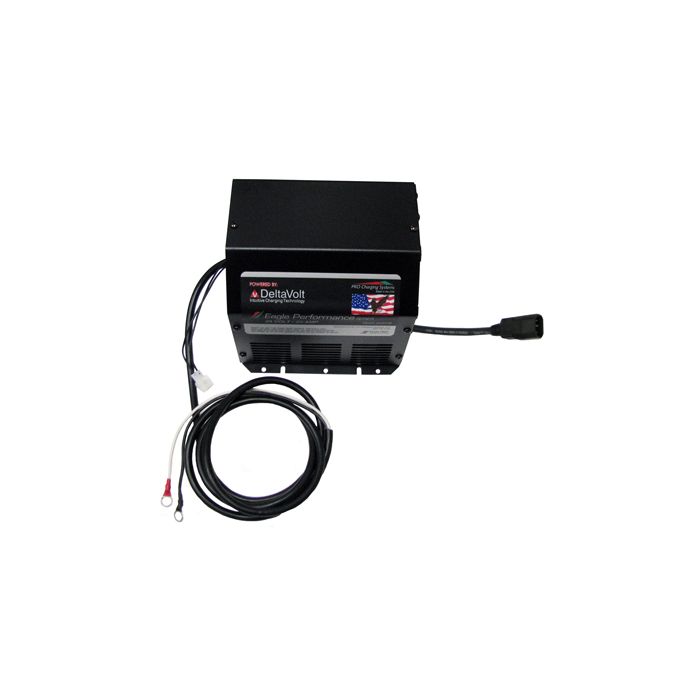

Genie Lift Charger i2425-OBRMLIFTIEC by Dual Pro
Drop-in ready ultra smart charger for Genie scissor lifts. The advanced i2425-OBRMLIFTIEC Delta Volt equipped charger is a 24V 25A charger made by Pro Charging Systems for Genie lifts manufactured 2011 or Later.
Replaces Genie Scissor Lift Units Manufactured 2011 or Later: GS-1530, GS-1930, GS-2032, GS-2632, GS-2046, GS-2646, GS-3232, GS-3246. Also replaces Part Numbers 66412 or 105739
The i2425-OBRMLIFTIEC is a part of the Eagle Performance Series chargers and are specially designed for use in the industrial and electric vehicle markets. With over 18 years of experience in manufacturing, the USA made Pro Charging Systems chargers are known as THE name in advanced microprocessor controlled charging technologies. The new intuitive Delta Volt technology is surpassed by none in the industry and represents a leap forward in charging abilities. Your batteries will appreciate individualized treatment and will last longer.
The Dual Pro Eagles series chargers provide a very fast recharge time, reaching absorption levels in virtually the same amount of time as their fastest competitors. They then take batteries to a “finishing” level while competitors have already terminated their charge profile or ended in a float stage. This added step along with the proprietary charge algorithm leave your batteries with a higher specific gravity per cell and an overall higher state of charge.
Genie i2425-OBRMLIFTIEC Charger Features:
- Automatically detects and configures for battery type
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- Exclusive temperature compensation
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Exclusive on board diagnostics
- 18 month warranty
Brand | Dual Pro |
---|---|
Model | i2425-OBRMLIFTIEC |
Chemistry | Lead Acid |
Input Frequency (Hz) | 60 |
Voltage (VDC) | 24 |
Input Voltage (VAC) | 120 |
Output Voltage - Charging (V) | 28 |
Output Voltage - Float (V) | 27 - Shuts Off |
Output Banks | 1 |
Max DC Current (A) | 25 |
Operating Temp. Range (oC) | 32-115 |
Warranty | 18 Month |
Dimensions (LxWxH - metric) | 216 x 180 x 197 |
Weight (lb) | 19 |
Dimensions (LxWxH - inches) | 8.5 x 7.1 x 7.75 |
