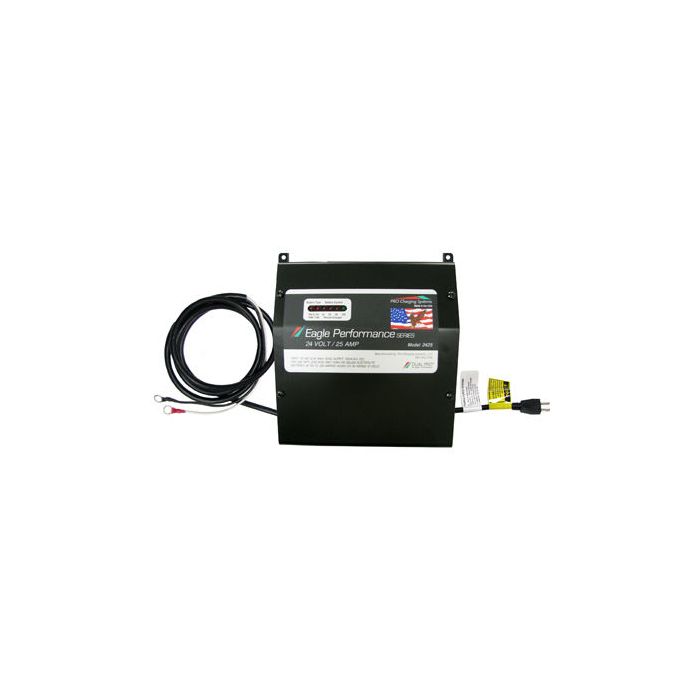

i2425-OBRMBIL Bil-Jax Incorporated Boom Lift Charger by Dual Pro
Bil-Jax Trailer Mounted Boom Lift Model Numbers 2622T, 3522A, 3632T, 4527A, 5533A - Part Number B01-05-0056 Bil-Jax Self Propelled Boom Lift Model Numbers 45XA, 55XA - Part Number B01-05-0056
Bil-Jax Trailer Mounted Boom Lift Model Numbers 2622T, 3522A, 3632T, 4527A, 5533A - Part Number B01-05-0056 Bil-Jax Self Propelled Boom Lift Model Numbers 45XA, 55XA - Part Number B01-05-0056
Eagle Performance Series chargers are specially designed for use in the industrial and electric vehicle markets. With over 18 years of experience in manufacturing, the USA made Pro Charging Systems chargers are known as THE name in advanced microprocessor controlled charging technologies. The new intuitive Delta Volt technology is surpassed by none in the industry and represents a leap forward in charging abilities. Your batteries will appreciate individualized treatment and will last longer.
The Dual Pro Eagles series chargers provide a very fast recharge time, reaching absorption levels in virtually the same amount of time as their fastest competitors. They then take batteries to a “finishing” level while competitors have already terminated their charge profile or ended in a float stage. This added step along with the proprietary charge algorithm leave your batteries with a higher specific gravity per cell and an overall higher state of charge.
This UL 1564L listed battery charger is perfect for fleet operators needing to track and monitor employee operations. The exclusive on board diagnostics tool records the last 83 charge profiles and will assist in determining if there is a battery issue or personnel issue such as prematurely taking the vehicle off the charger before being fully charged.
Brand | Dual Pro |
---|---|
Model | i2425-OBRMBIL |
Chemistry | Lead Acid |
Input Frequency (Hz) | 60 |
Voltage (VDC) | 24 |
Input Voltage (VAC) | 120 |
Output Voltage - Charging (V) | 28 |
Output Voltage - Float (V) | 27 - Shuts Off |
Output Banks | 1 |
Max DC Current (A) | 25 |
Operating Temp. Range (oC) | 32-115 |
Warranty | 18 Month |
Dimensions (LxWxH - metric) | 254 x 193 x 180 |
Weight (lb) | 19 |
Dimensions (LxWxH - inches) | 10 x 7.6 x 7.1 |
