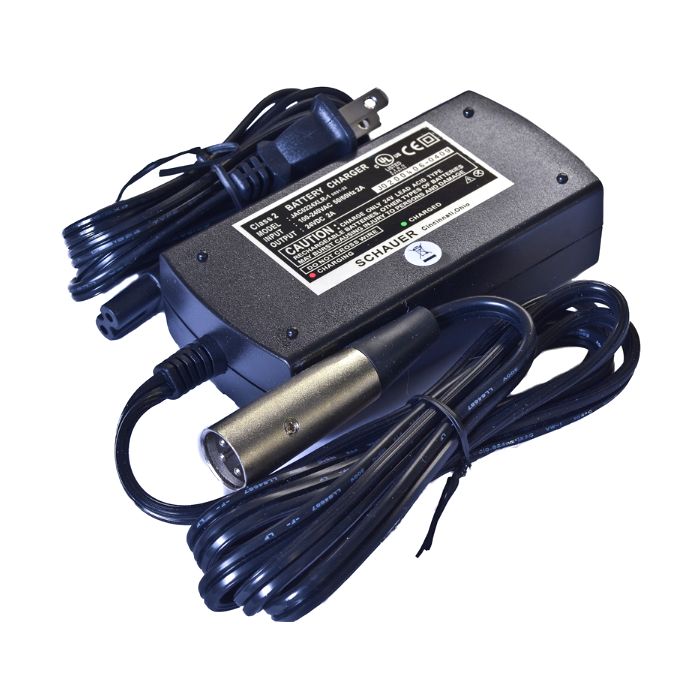

JAC0224-XLR Schauer 24 Volt 2 Amp Battery Charger 0891-32

Rating:
100 % of 100
$47.95
In stock
SKU
JAC0224-XLR2
24V 2Ah Battery Charger with the XLR connector by Japlar Schauer for mobility scooters and similar applications.

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode. Plastic case with alligator clamps.

See also the 0891-34 which has the Alligator clamp connector and is widely used in commercial and light industrial applications.

This smart charger uses state-of-the-art technology allowing the JAC0224-XLR to take up 50% less space than comparable chargers all while doubling the warranty period to two years vs. the competitions one year warranty period. This fully automatic charger follows the battery impedance to the end of the charge cycle. It can be used on all battery types. The peak charging voltage on this 24 volt charger is 28.8 volts, with a float voltage of 27.6V. It can be safely used on electric scooter batteries & wheelchair batteries.

More Information
Brand Schauer
Model JAC0224-XLR
Chemistry Lead Acid
Input Frequency (Hz) 50/60
Voltage (VDC) 24
Input Voltage (VAC) 90-260
Output Voltage - Charging (V) 28.8
Output Voltage - Float (V) 27.6
Output Banks 1
Max DC Current (A) 2
Operating Temp. Range (oC) 32-120
Warranty 2 Year
Dimensions (LxWxH - metric) 112 x 61 x 30
Weight (lb) 1
Dimensions (LxWxH - inches) 4.4 x 2.4 x 1.2
