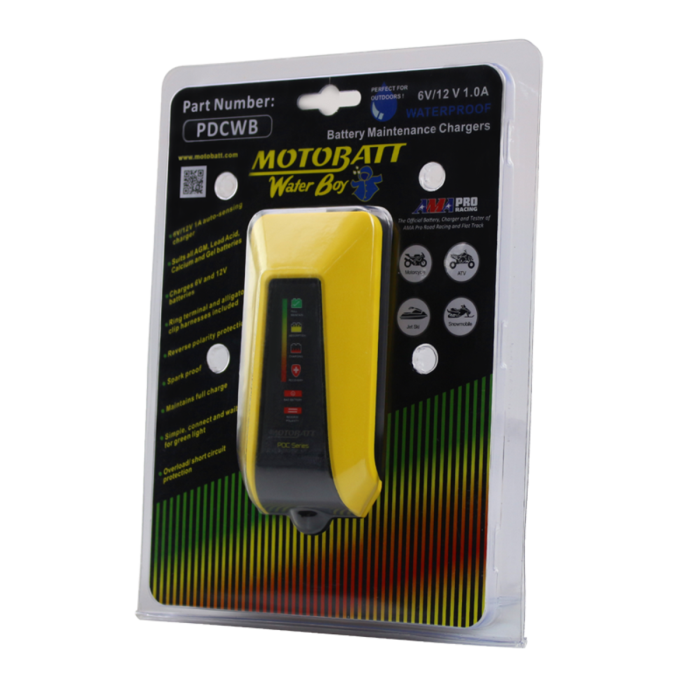

MotoBatt 1.0A Water Boy Charger

Motobatt Nine Stage Battery Charger

1. Qualification Phase: Initially ensures that the battery is in good condition prior to launching.
2. Battery Recovery Phase: MOTOBATT Battery Recovery starts if battery voltage has risen unusually high in the early portion of the re-charge cycle. Once the battery recovery phase has succeeded in getting the battery to accept power, normal battery charging will begin.
3. Soft Start Phase: Soft Start is used when the charger has detected a battery is at a very low initial state of charge. Voltage and current are delivered at a specified rate to help the recovery prior to entering pulse charge mode.
4. Pulse Mode Phase: MOTOBATT Pulse Mode provides a pulse charge to help the newly recovered battery to continue to accept charge as it enters Reconditioning Phase.
5. Reconditioning Phase: The MOTOBATT Reconditioning Phase continues to work the battery at a slightly higher voltage and amperage to "re-activate" the battery plates, for improved depth of charge and charge acceptance.
6. Bulk Charge Phase: With the battery now through Pulse and Reconditioning phase and well on its way to full recovery, the MOTOBATT Bulk Charge Phase gives the constant current, taking the battery up to 80% of its capacity.
7. Absorption Phase: In the MOTOBATT Absorption Phase the battery is given constant voltage while the current is reduced, based on action taken from monitoring the batterys current state, until the battery is 100% charged.
8. Check Phase: The battery will now be checked to be sure that it is holding a charge properly. The charger will make a determination and pass the battery for service, or not.
9. Maintenance Phase: The Battery can be left on the charger indefinitely. The unit will monitor the battery and "turn-on" again as needed to maintain the battery at a full state of readiness.

Formerly MBCWB. Now PDCWB which can also charge lithium batteries.
