MotoBatt MPLX12U-HPMotoBatt MPLX12U-HP
Move your mouse over image or click to enlarge

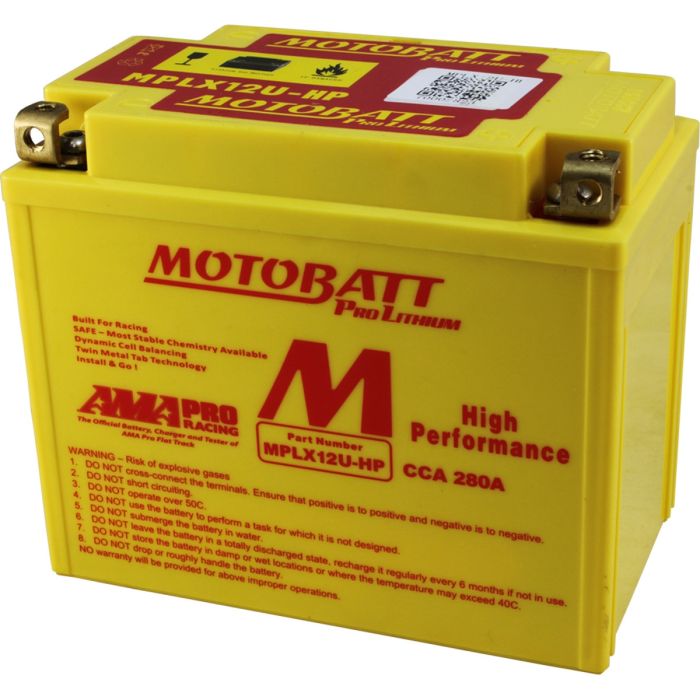

MPLX12U-HP Motobatt Lithium Battery

Quick Overview

This battery has 280 Cold Cranking Amps!
  • Availability

    In Stock

  • Product Brand

    MotoBatt

  • Model Number

    MPLX12U-HP

  • Voltage (V)

    12

  • Cold Crank Amps (CCA)

    280

  • Capacity (Ah)

    5 (1C Rate)

  • Warranty

    24 Mo (1Yr + 1Yr)

$165.95
ADD TO CART

Motobatt MPLX12U-HP QUADFLEX LifePO4 Pro Lithium Replaces YuasaYB12BB2, YTX12BS,YTX14BS, YTX14HBS, YTX14LBS, KMX14BS, YTX15LBS *

Features

  • Motobatt Lithium batteries are around 3 times lighter than lead acid batteries
  • Designed to produce higher cranking performance for competition environments
  • Strong Starting Current, Reliable repeated start opportunities over a wide variety of conditions
  • Very Low “self-discharge” while in storage
  • Fast Recharge time, 6 minutes for up to 90% charge

Cell Balancing Circuit (CBC)

This is a key feature of Motobatt Lithium batteries over competition. Dynamic cell balancing provides the ultimate in cell control giving superior performance, life span and safety.

Each Motobatt Lithium battery contains a unique CBC which controls the charge and discharge of the cells at all times, especially when currents can be unreliable when in actual use on the machine. Many competitors require you to buy their specific charger at a high cost because the CBC is in the charger, not the battery itself. This is inferior cell control since the only time the cells are properly controlled and balanced is when connected to a wall socket.

Special Features

  • Contains CBC board and 70CCA over standard
  • Note competitor batteries or standard P series Lithium Batteries may not recover from being drawn down under 8V. This is the leading cause of nuisance warranty for Lithium batteries.

Motobatt Pro Lithium batteries are a high performance racing battery designed to produce high cranking currents for short burst periods. Lithium starting batteries generally lack Amp Hour capacity and are not suitable for applications where high power loads are placed on the battery. Stereo systems, Grip and clothing heaters, winches, light bars etc. all draw excess loads and lithium starting batteries are not designed to cope with these loads. Always thoroughly assess the power requirements of your machine with all loads on with an experienced technician before making a decision to use a Lithium battery.

Product Specs
Availability Note: In Stock
Brand: MotoBatt
Model: MPLX12U-HP
Capacity 20Hr (Ah): 5 (1C Rate)
Cold Cranking Amps (CCA): 280
Voltage (V): 12
Chemistry: Lithium Phosphate
Warranty: 24 Mo (1Yr + 1Yr)
Polarity: +++|--- and ---|+++
Cranking Amps (CA): No
Pulse Cranking Amps (PCA): No
Dimensions (LxWxH - inches): 5.94 x 3.43 x 5.12
Dimensions (LxWxH - metric): 151 x 87 x 130
Weight (lb): 1.96
OEM Replacement: YTX12-BS, YTX14-BS, YTX14L-BS, YTX14H, GTX14-BS, GTX12-BS
This Product Fits
Motorcycle
  • APRILIA ETV Caponord (2002-2003)
  • APRILIA RST Futura (2001-2004)
  • APRILIA RSV 1000 Factory (2004-2005)
  • APRILIA RSV 1000 Mille (2000-2009)
  • APRILIA RSV 1000 Mille R (2001-2005)
  • APRILIA RSV 1000 Mille SP (1999)
  • APRILIA SL Falco (2001-2003)
  • APRILIA Tuono (2003-2005)
  • APRILIA MANA850 (2009)
  • APRILIA Shiver (2009)
  • BIMOTA SB6R (1997-1999)
  • BIMOTA YB11 (1996-1999)
  • BIMOTA SB8R, SB8RS (1998-2000)
  • BMW K1200R, S (2005-2009)
  • BMW R1200GS, S, R (2005-2009)
  • BMW F800ST, GS (2009)
  • BMW F650GS (2009)
  • BUELL S1 Lightning (1996-1999)
  • BUELL XB12R Firebolt, XB12S Lightning (2004-2008)
  • BUELL XB12X Ulysses (2006-2009)
  • BUELL 1125R (2008-2009)
  • BUELL XB9R Firebolt, XB9S Lightning (2002-2009)
  • BUELL Blast (2000-2009)
  • DUCATI 1098 (2007)
  • HARLEY-DAVIDSON XL,XLH (Sportster) (2004-2009)
  • HARLEY-DAVIDSON VRSC V-Rod (2002-2007)
  • HARLEY-DAVIDSON XL,XLH (Sportster) (2004-2008)
  • HONDA GL1500 Valkyrie (1997-2003)
  • HONDA VTX1300C,R,S,Retro (2003-2009)
  • HONDA CBR1100XX (1997-2000)
  • HONDA Shadow (Spirit, Aero, A, C, E, Tourer) (2001-2007)
  • HONDA ST1100,ABS_TCS, 1100A (1991-2002)
  • HONDA VT1100C,C3,T (2001-2007)
  • HONDA VT1100C2 Shadow Sabre (2000-2007)
  • HONDA CB1000 (1994-1995)
  • HONDA VTR1000F SUPER HAWK (1997-2000)
  • HONDA PC800 PACIFIC COAST (1989-1998)
  • HONDA VFR800FI INTERCEPTOR (1998-2001)
  • HONDA VF750C, C2, D MAGNA (1994-2003)
  • HONDA VFR750F (1990-1997)
  • HONDA VT750C Shadow (1998-2000)
  • HONDA VT750CD, CD2 Shadow Deluxe (1998-2002)
  • HONDA VT750CDA,B,C,D Shadow A.C.E. Deluxe (2002-2003)
  • HUSQVARNA TE610E,SM610S (2000-2001)
  • HUSQVARNA TE450-TC450 (All Years)
  • HYOSUNGMOTORS GT650, R, S (2009)
  • HYOSUNGMOTORS GT250, R (2009)
  • KAWASAKI ZG1400 Concours (2008-2009)
  • KAWASAKI ZX14 Ninja (2006-2009)
  • KAWASAKI ZRX1200R (2001-2005)
  • KAWASAKI ZX12R (2000-2005)
  • KAWASAKI ZZR1200 (2002-2005)
  • KAWASAKI ZRX1100 (1999-2000)
  • KAWASAKI ZX1100-D Ninja ZX-11 (1995-2001)
  • KAWASAKI ZX1100-D Ninja ZX-11(CN) (1993-1994)
  • KAWASAKI ZX1100-E(GPZ1100),ABS (1995-1997)
  • KAWASAKI Vulcan 900 Classic (2006-2009)
  • KAWASAKI ZX900-B NINJA (ZX-9R) (1994-1997)
  • KAWASAKI VN800-A, B, C, E Vulcan, Classic, Drifter (1995-2003)
  • KAWASAKI VN800-A, B, E Vulcan, Classic, Drifter (2004-2006)
  • KAWASAKI ZR-7, S (2000-2003)
  • KAWASAKI ZR-7, S (ZR750) (2000-2004)
  • KAWASAKI ZR750-C ZEPHYR (1991-1994)
  • KAWASAKI ZX750-J NINJA ZX-7 (1991-1995)
  • KAWASAKI ZX750-P NINJA ZX-7R (1996-2003)
  • KAWASAKI ER6n (2009)
  • KAWASAKI KLE650 Versys (2008-2009)
  • KAWASAKI NINJA 650R (2006-2009)
  • KAWASAKI W650 (2000-2002)
  • KAWASAKI ZX600-E, F NINJA ZX-6, 6R (1993-2002)
  • KAWASAKI ZZR600 (2002-2004)
  • SUZUKI GSX1300BK B-King (2008-2009)
  • SUZUKI GSXR1300R, Z Hayabusa (2008-2009)
  • SUZUKI GSF1200, S Bandit (1997-2005)
  • SUZUKI DL650 V-Strom (2004-2009)
  • TRIUMPH Spring RS (2000-2004)
  • YAMAHA TDM850 (1992-1993)
  • YAMAHA YZF600R (1995-2007)
  • YAMAHA FZR1000 (1991-1
ATV
  • ARCTIC CAT DVX250, 2X4 (2006)
  • BOMBARDIER (CAN-AM) DS250 (2006-2009)
  • HONDA ATC125M (1986-1987)
  • HONDA TRX200 Fourtrax (1990-1996)
  • HONDA TRX200SX Fourtrax (1986-1988)
  • HONDA ATC250ES Big Red (1985-1987)
  • HONDA ATC250SX (1985-1987)
  • HONDA TRX250 FourTrax, Recon, ES (1985-1987)
  • HONDA TRX250 FourTrax, Recon, ES (1997-2009)
  • HONDA TRX300 FourTrax 300 (1988-2000)
  • HONDA TRX300FW FourTrax 4X4 (1988-2000)
  • HONDA FL350R ODYSSEY (1985)
  • HONDA TRX350 Rancher (2000-2006)
  • HONDA TRX350,D FourTrax 4X4 (1986-1989)
  • HONDA FL400R Pilot (1989-1990)
  • HONDA TRX400 Rancher AT (2004-2006)
  • HONDA TRX400W Foreman (1995-2003)
  • HONDA TRX420 Rancher 4X4 (2009)
  • HONDA TRX450 FourTrax Foreman S, ES (1998-2004)
  • HONDA FourTrax Foreman ES, 4X4 (2005-2009)
  • HONDA TRX500 FourTrax Rubicon (2001-2009)
  • HONDA TRX500FE,FM,TM (2005-2009)
  • HONDA TRX650 Four Trax Rincon (Std.) (2003-2005)
  • KAWASAKI KVF400-C Prairie 400, 4x4 (CN) (1999-2002)
  • KAWASAKI KVF400-D Prairie 400, 4x4 (CN) (1999-2001)
  • KAWASAKI 4x4 Advantage Classic (2002-2003)
  • KAWASAKI KVF650 Brute Force (2002-2008)
  • KAWASAKI KFX700 (2003-2009)
  • KAWASAKI KSV700-A, B (KFX700) (2004-2008)
  • KAWASAKI KVF700-A, B, D Prairie 700, 4x4 (2004-2006)
  • KAWASAKI KVF750 Brute Force (2005-2009)
  • KYMCO Mongoose, MXU (All Years)
  • KYMCO MXU300SD (All Years)
  • POLARIS All Models (1985-2005)
  • SUZUKI LT230E QuadRunner (1987-1993)
  • SUZUKI LT230E QuadRunner (1988-1993)
  • SUZUKI LT-F250, F Ozark (2002-2009)
  • SUZUKI LT-A400 Eiger 2WD,F Eiger 4WD (2002-2007)
  • SUZUKI LT-A400F King Quad (2009)
  • SUZUKI LT-F400 Eiger 2WD,F Eiger 4WD (2002-2007)
  • SUZUKI LT-A450X King Quad (2007-2008)
  • SUZUKI LT-V700F Twin Peaks (2004-2005)
  • YAMAHA YFM660R Raptor (2001-2005)
  • XTREME
  • JACKEL MOTORSPORTS 200 R
  • BOREEM SPORT
Motor Scooters
  • APRILIA Scarabeo (2009)
  • APRILIA Sport City (2009)
  • HONDA CH250 ELITE (1985-1990)
  • HONDA CN250 HELIX (1986-1987)
  • HONDA CN250 HELIX (1993-2007)
  • KYMCO Xciting 500i (2009)
  • KYMCO Xciting 400i (2009)
  • KYMCO People 250 (2009)
  • SUZUKI AN650 Burgman (2003-2009)
  • VESPA (PIAGGIO) BV500 (2008-2009)
  • VESPA (PIAGGIO) MP3 500 (2008-2009)
  • VESPA (PIAGGIO) X9 (2009)
  • VESPA (PIAGGIO) MP3 400 (2008-2009)
  • VESPA (PIAGGIO) BV250 (2008-2009)
  • VESPA (PIAGGIO) MP3 250 (2008-2009)
Snowmobile
  • YAMAHA Apex (2006-2009)
  • YAMAHA Phazer (2009)
  • YAMAHA Venture Lite (2009)
FAQs


FAQs About This Product

Ask a Question

  • In the photo shown is positive on the left ?
    This is a Quadflex battery with 4 terminal locations. You cannot get the polarity wrong. Because of the four detachable terminals it will always be correct for your application.
    Rate This Answer:

  • I left my bike key on draining all the power from my Moto back battery which is practically brand new can I charge it while it's in the bike with the other electronic components attached to the terminals or do I have to detach everything to charge it in t
    Yes, it can be left in the bike connected.
    Rate This Answer:
