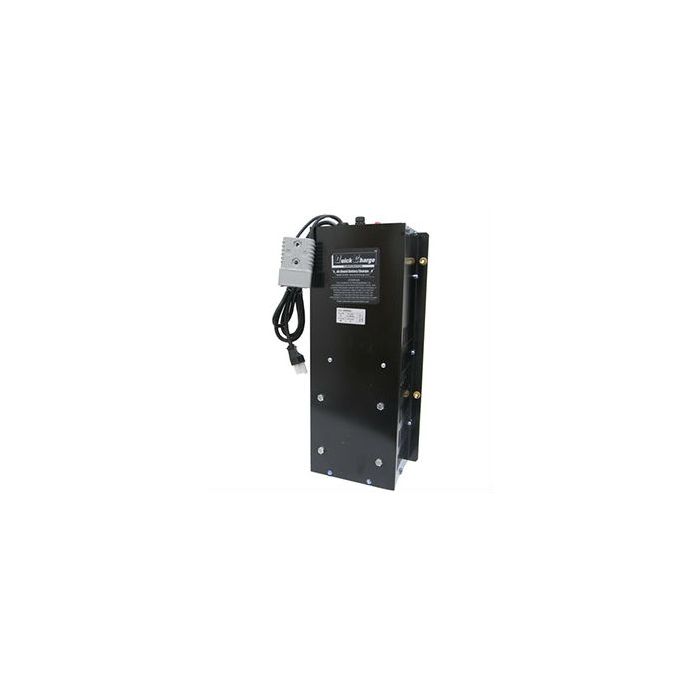

OB2425QSVR Charger 24V 25A for Cat Lifts, Jungheinrich and Mitsubishi Fork Trucks
This on-board 24 Volt 25 Amp charger is a slim fitting charger designed to work with DEKA motive battery 12D857 and Exide GNB Pallet Pro M90004S24CHPTM. This charger can be used as a direct replacement for batteries in this case ranging from 150Ah to 395Ah (20hr). It is also known by part number QVSR2425.
These battery cases can be found on several electric pallet jacks, but not limited to the following: Caterpillar 2WPL4500 and WP4500, Mitsubishi fork truck PMW23N, Jungheinrich EJE120 older models, Toyota 7HBW23, and Yale MPW050EN24T2736.
It can replace the following chargers: Alltech AAE24-150L1A, Applied Energy Solutions (AES) Colt A15124, Pro Charging Systems (Dual Pro) i2425OBRMBPT, Quick Charge OB2425GNBII, ProMatch A000028480 and SVR24251206TM, SVR2425120AD.
The OB2425QSVR is an American made charger made by Quick Charge in OK and comes with a 3 year manufacturer warranty.
| Brand | Quick Charge |
|---|---|
| Model | OB2425QSVR |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 115 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 8 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 432 x 181 x 121 |
| Dimensions (LxWxH - inches) | 17 x 7.125 x 4.75 |
