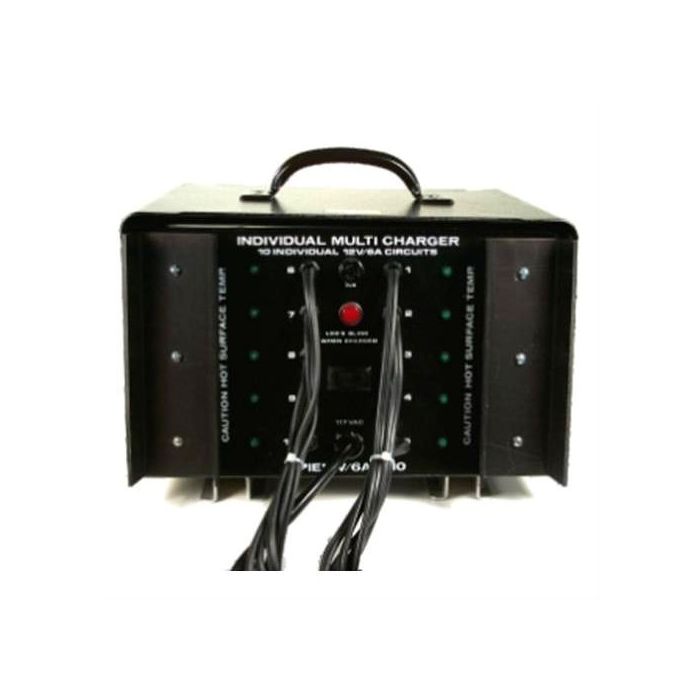

Quick Charge QPAGM 12 Volt 10 Bank Smart Charger
Move your mouse over image or click to enlarge

Quick Charge QPAGM 12 Volt 10 Bank Smart Charger

Quick Overview

10 Independent Isolated Circuits @ 6 Amps Each
  • Availability

    In Stock

  • Availability Note

    10-14 Day Build Time

  • Product Brand

    Quick Charge

  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    3 Year

The QPIE (Octopus) charger is designed for charging from one to ten 12 volt batteries independently. A float charger, with ten individual 12 volt 6 amp circuits allows batteries with different states of charge to be charged at the same time without the over and undercharging problems of series or parallel charging. Batteries are charged to the gassing threshold and held indefinitely. Finish current is below 1 amp. Designed for wet starting batteries, or gel type batteries. The Octopus is a portable or shelf type charger with (10), 12 volt, 6 amp independent circuits. Batteries in different states of discharge can be connected, and each will receive the proper charge. No over or under charging. The Green LED blinks indicating full charge. The batteries can be left connected indefinitely with only an occasional check of water level. Model QPAGM12v/6Ax10 is three stage charger for AGM type batteries. Tri-color LED's indicate what stage each battery is in. The Octopus is polarity protected, and there is no sparking if the charge leads come together. In addition, more than one set of leads can be connected to any battery to increase the rate of charge in 6 amp increments.
Product Specs
Availability Note: 10-14 Day Build Time
Brand: Quick Charge
Model: QPAGM12v/6Ax10
Chemistry: Lead Acid
Input Frequency (Hz): 60
Voltage (VDC): 12
Input Voltage (VAC): 120
Output Voltage - Charging (V): No
Max AC Current (A): N/A
Output Voltage - Float (V): No
Output Banks: 10
Max DC Current (A): 6
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 3 Year
Dimensions (LxWxH - metric): 305 x 229 x 178
Weight (lb): 38
Dimensions (LxWxH - inches): 12.0 x 9 x 7
