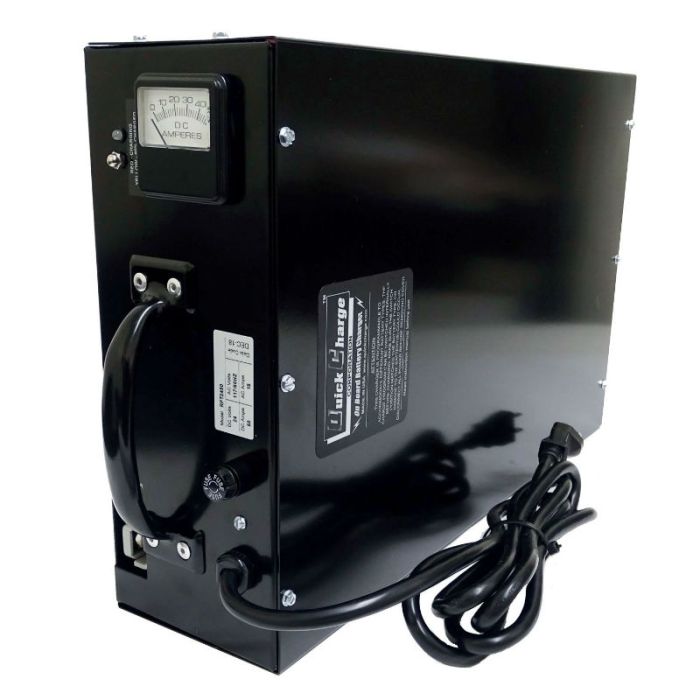

RPT2450 On-Board 24V 50A Industrial Charger by Quick Charge
This on-board 24 Volt 50 Amp charger is a slim fitting charger designed to work with DEKA motive battery 12D8511. This charger can be used as a direct replacement for batteries in this case ranging from 300Ah to 500Ah (20hr).
These battery cases can be found on several lift trucks and rider pallet jacks, but not limited to the following: Caterpillar WR6000, Crown PE4500-60, Toyota 8HBE30.
It can replace the following chargers: Alltech AAE24-280U1A, and Applied Energy A15573-F3, A15730, A15642, A15125, A15731.
The Applied Energy chargers may have the Flooded designation of F3, F4 or F5; AGM profile (similar to GNB) of G3, G4, G5; Deka profile of D3, D4, or D5; Gel Excide profile of E3, E4, E5.
We have also had reports that the A15730 part number can be found on the smaller case size measuring 16.12 x 7.25 x 4.8. If you find this to be true you will need the OB2425QSVR charger.
The RPT2450 is an American made charger made by Quick Charge in OK and comes with a 3 year manufacturer warranty.
Brand | Quick Charge |
---|---|
Model | RPT2450 |
Chemistry | Lead Acid |
Input Frequency (Hz) | 60 |
Voltage (VDC) | 24 |
Input Voltage (VAC) | 115 |
Output Voltage - Charging (V) | 28 |
Max AC Current (A) | 19 |
Output Voltage - Float (V) | 27 |
Output Banks | 1 |
Max DC Current (A) | 50 |
Warranty | 3 Year |
Dimensions (LxWxH - metric) | 311 x 126 x 460 |
Weight (lb) | 56 |
Dimensions (LxWxH - inches) | 12.25 x 4.94 x 18.12 |
