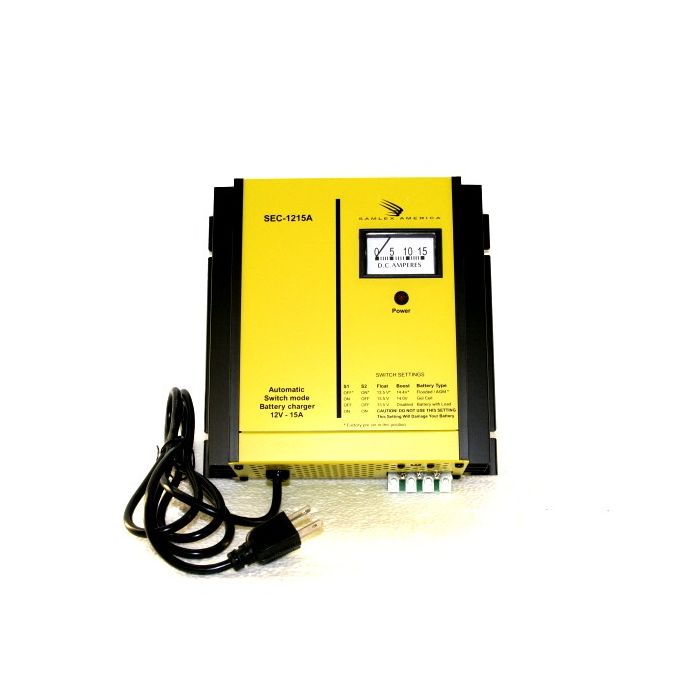

Samlex SEC1215 Battery Charger
$999.00
In stock
SKU
SEC1215
12 volt 15 amp Samlex 3 bank, 3 stage battery charger
This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks. Typical Applications for the SEC1215 Battery Charger: Automotive Recreational vehicles Marine Communications sites Battery back-up systems
| Brand | Samlex |
|---|---|
| Model | SEC1215 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 12 |
| Input Voltage (VAC) | 100-240 |
| Output Voltage - Charging (V) | 14.0 / 14.4 Selectable |
| Output Voltage - Float (V) | 13.5 |
| Output Banks | 3 |
| Max DC Current (A) | 15 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 216 x 213 x 84 |
| Weight (lb) | 4.8 |
| Dimensions (LxWxH - inches) | 8.5 x 8.4 x 3.3 |
