Schauer 24V 7 Amp Battery Charger w/ Rings
Move your mouse over image or click to enlarge

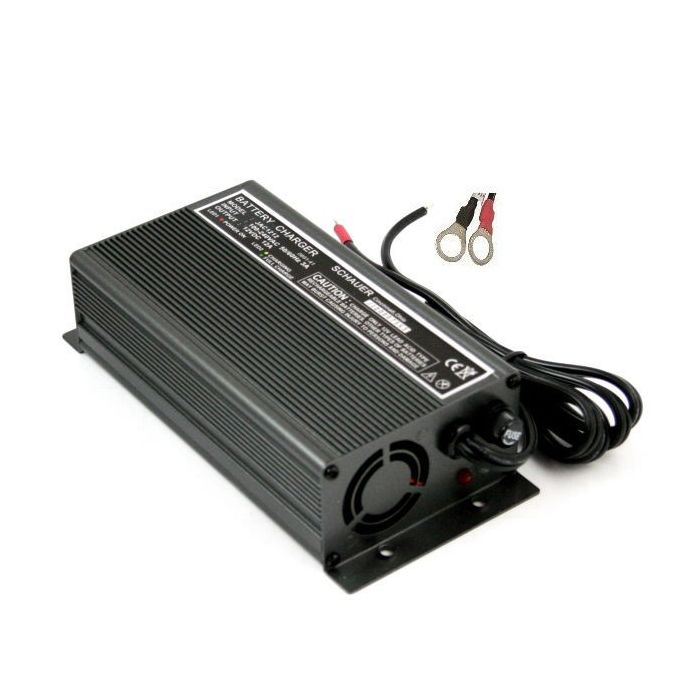

Schauer 24V 7 Amp Battery Charger w/ Rings

Quick Overview

24 Volt 7Ah On Board Battery Charger with Ring Connectors. JAC0724R
  • Availability

    In Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    2 Year

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode. Aluminum case.
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC0724R
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 24
Input Voltage (VAC): 90-260
Output Voltage - Charging (V): 29.2
Max AC Current (A): N/A
Output Voltage - Float (V): 27.6
Output Banks: 1
Max DC Current (A): 7
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 178 x 89 x 46
Weight (lb): 2.2
Dimensions (LxWxH - inches): 7.0 x 3.5 x 1.8
We Also Recommend

You may also be interested in the following product(s)

XPAL Power XP18000A External Portable Battery - Black
As low as: $148.95

FAQs About This Product

Ask a Question

  • Is this charger water proof?
    No, this charger is not waterproof.
