Schauer 48 Volt 15A Commercial / Industrial Charger JAC1548H
$358.00
In stock
SKU
JAC1548H

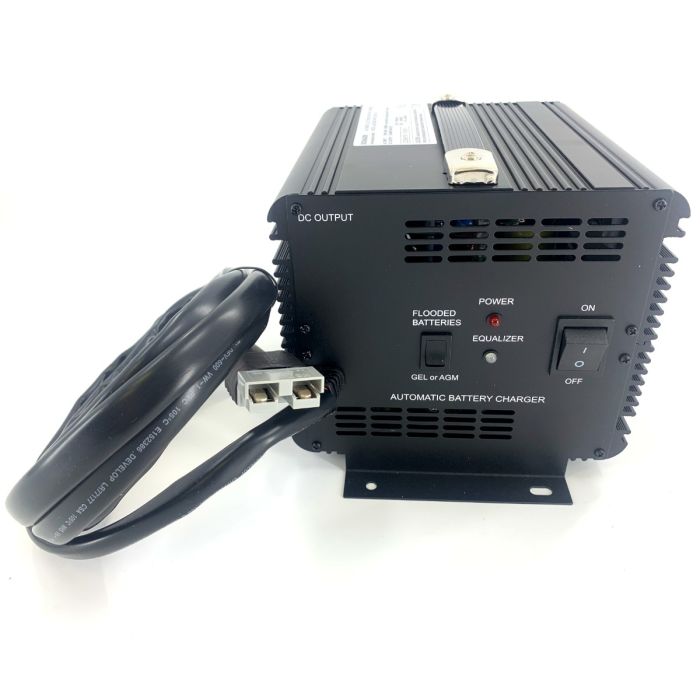

48V 15Ah industrial battery charger by Japlar Schauer w/ SB50 Cord
This is a durable, aluminum cased unit. Typical applications include golf carts , smaller forklifts, scissor lifts, industrial carts and applications. They are excellent for use on deep cycle batteries . The charger is selectable for flooded or sealed lead acid battery types, is fused on the input and output sides, and has flanges for mounting. The JAC1548 features an auto-sensing universal input from 100 to 240 VAC, and is rated for a 100% duty cycle. This unit comes with the industry standard 50 amp Anderson SB50 connector. Additional connectors are listed below.
| Brand | Schauer |
|---|---|
| Model | JAC1548 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 48 |
| Input Voltage (VAC) | 100-240 |
| Output Voltage - Charging (V) | 59.5 or 57.6 |
| Output Voltage - Float (V) | 53.6 |
| Output Banks | 1 |
| Max DC Current (A) | 15 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 286 x 178 x 171 |
| Weight (lb) | 11 |
| Dimensions (LxWxH - inches) | 11.25 x 7.0 x 6.75 |
