Schauer 12 Volt Battery Charger JAC0512
Move your mouse over image or click to enlarge

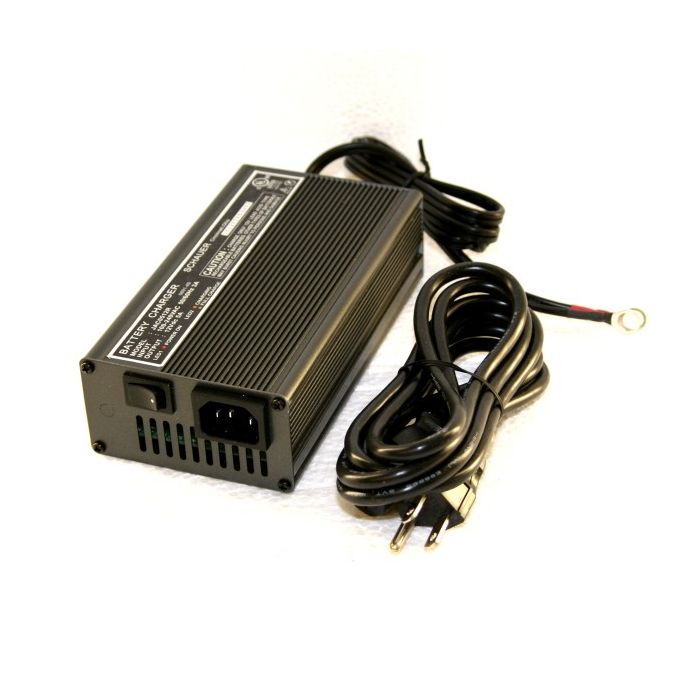

Schauer JAC0512 12 Volt 5Ah Battery Charger

Quick Overview

12V 5Ah Battery Charger w/ ring leads by Japlar Schauer

  • Availability

    In Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    2 Year

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode. Aluminum case.
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC0512
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 12
Input Voltage (VAC): 90-260
Output Voltage - Charging (V): 14.6
Max AC Current (A): N/A
Output Voltage - Float (V): 13.5
Output Banks: 1
Max DC Current (A): 5
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 178 x 89 x 46
Weight (lb): 2.2
Dimensions (LxWxH - inches): 7.0 x 3.5 x 1.8
We Also Recommend

You may also be interested in the following product(s)

XPAL Power XP18000A External Portable Battery - Black
As low as: $148.95

FAQs About This Product

Ask a Question

  • Lost my instruction for proper hook up to my golf cart (36V).
    That may be a good thing...I would not recommend using a 12V charger to maintain your 36V battery system. If you do you can only maintain 1 or 2 batteries at a time via the 12V sub-series.
