Schauer JAC0524-R 24 Volt 5Ah Battery Charger with Ring Connector
$93.95
In stock
SKU
JAC0524-R
- Buy 5 for $86.00 each and save 8%
- Buy 20 for $76.00 each and save 19%

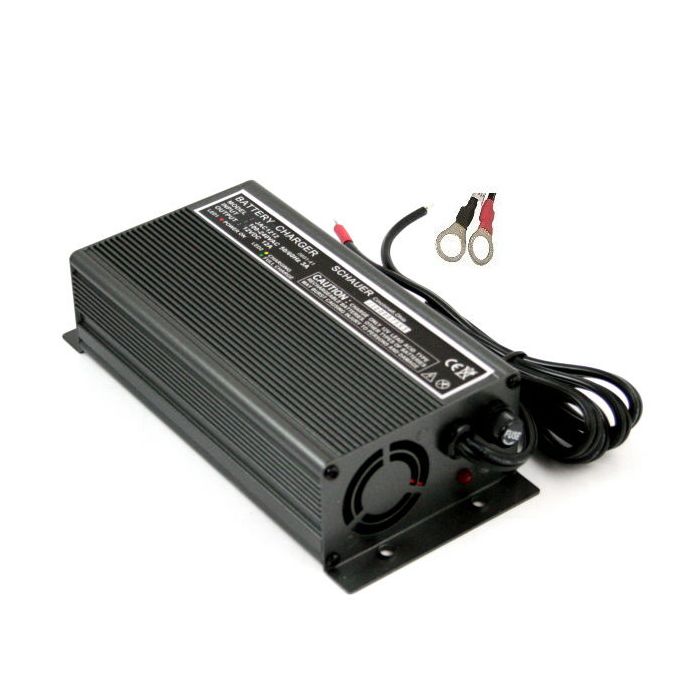

24 Volt 5 Amp Battery Charger with Ring Connector by Japlar Schauer. JAC0524
Buy a new JAC0524 charger that is a 24V 5 Amp battery charger with ring terminal connectors made by Schauer. Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic. Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode. Aluminum case.
| Brand | Schauer |
|---|---|
| Model | JAC0524-R |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 90-260 |
| Output Voltage - Charging (V) | 29.2 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 5 Amps |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 178 x 89 x 46 |
| Weight (lb) | 2.2 |
| Dimensions (LxWxH - inches) | 7 x 3.5 x 1.8 |
