Schauer JAC0524-XLR 24 Volt 5Ah Scooter Charger Schauer JAC0524-XLR 24 Volt 5Ah Scooter Charger
Move your mouse over image or click to enlarge

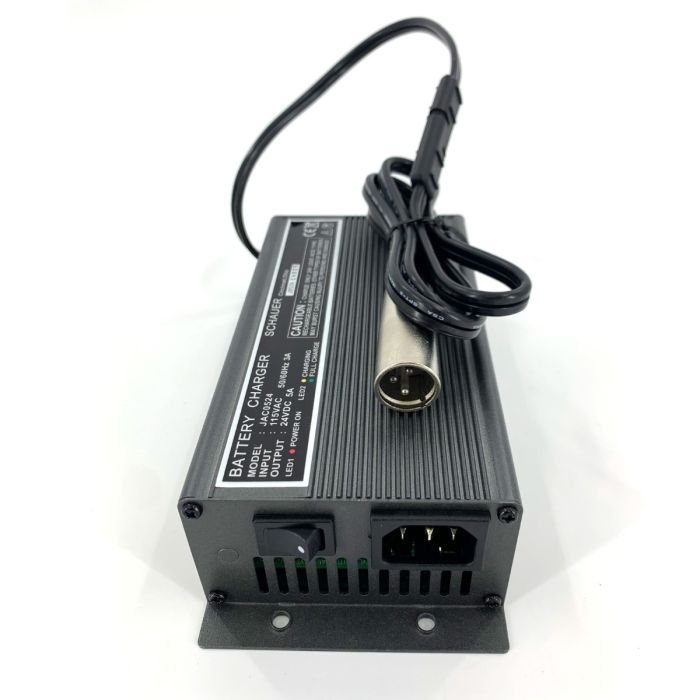

Schauer JAC0524-XLR 24 Volt 5Ah Scooter Charger

Quick Overview

24V 5 Amp Battery Charger with XLR (Round 3 Pin) Connector by Japlar Schauer
  • Availability

    In Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)

    5 Amps

  • Warranty

    2 Year

Original Price : $107.95
This on board / off board 24V battery charger is most often used with mobility scooter batteries. The JAC0524 is a multi-stage smart charger that can be left connected to your batteries without causing damage. It comes standard with a 2 year replacement warranty. We love the Schauer JAC0524 charger because it is much quieter and more durable compared to the competition.
Product Specs
Availability Note: In Stock
Brand: Schauer
Model: JAC0524-XLR
Chemistry: Lead Acid
Input Frequency (Hz): 7.0 x 3.5 x 1.8
Voltage (VDC): 24
Input Voltage (VAC): 90-260 VAC
Output Voltage - Charging (V): 29.2 VDC
Max AC Current (A): N/A
Output Voltage - Float (V): 27.0 VDC
Output Banks: 1
Max DC Current (A): 5 Amps
Ripple (%): No
Operating Temp. Range (oC): 32-120 °F
Warranty: 2 Year
Dimensions (LxWxH - metric): 178 x 89 x 46
Weight (lb): 3
Dimensions (LxWxH - inches): 7 x 3.5 x 1.8
We Also Recommend

You may also be interested in the following product(s)

XPAL Power XP18000A External Portable Battery - Black

FAQs About This Product

Ask a Question

  • how do you turn on power? Is dot on?
    Assuming you are plugged into an AC electrical outlet, the power switch on the charger should have the side with the dot pressed down. To confirm the other side of the charger will have a red and green light turn on.
