JAC1372 Charger
Move your mouse over image or click to enlarge

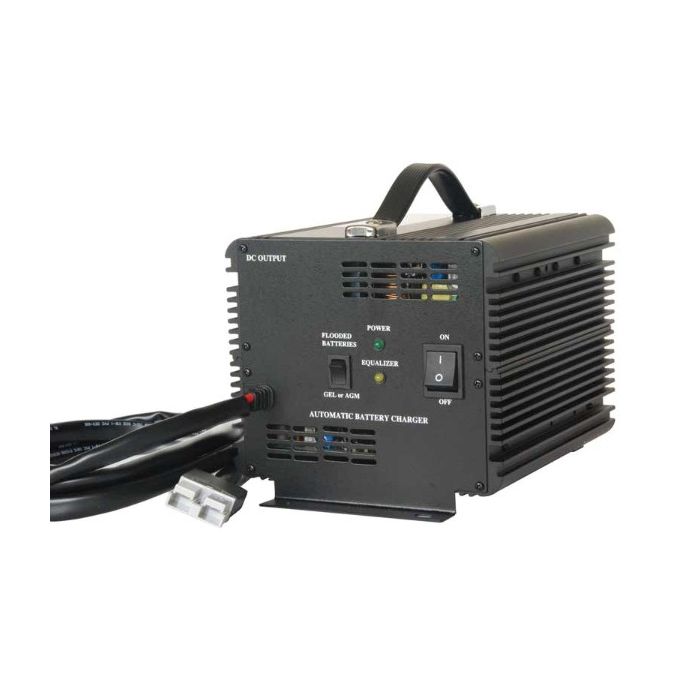

Schauer JAC1372 Charger 72 Volt 13 Amp

Quick Overview

72V 13 Amp Schauer industrialized charger
  • Availability

    Out of Stock

  • Product Brand


  • Model Number


  • Voltage (VDC)


  • Max DC Current (A)


  • Warranty

    2 Year

The Schauer 72V 13A charger is perfect for electric vehicles like Gem cars requiring 72 volt chargers. The JAC1372 can be used on both flooded and sealed lead acid batteries. It is easy to switch between either type with the flip of a button. The metallic color aluminum case is rugged and will withstand abuse. It has flanges for table top or on board mounting. The JAC1372H features an auto-sensing universal input from 100 to 240 VAC, and is rated for a 100% duty cycle. It comes standard with the grey SB50 Anderson plug-n-play connection system making it easy to adapt to any type of DC pigtail required.
Product Specs
Availability Note: Out of stock
Brand: Schauer
Model: JAC1372, 0891-172
Chemistry: Lead Acid
Input Frequency (Hz): 50/60
Voltage (VDC): 72
Input Voltage (VAC): 100-240
Output Voltage - Charging (V): 89.2 or 86.4
Max AC Current (A): N/A
Output Voltage - Float (V): 80.4
Output Banks: 1
Max DC Current (A): 13
Ripple (%): No
Operating Temp. Range (oC): 32-120
Warranty: 2 Year
Dimensions (LxWxH - metric): 241 x 178 x 171
Weight (lb): 10
Dimensions (LxWxH - inches): 9.5 x 7.0 x 6.75
