Taylor Dunn 79-302-15 Charger by Quick Charge TD2440
$632.00
In stock
SKU
TD2440

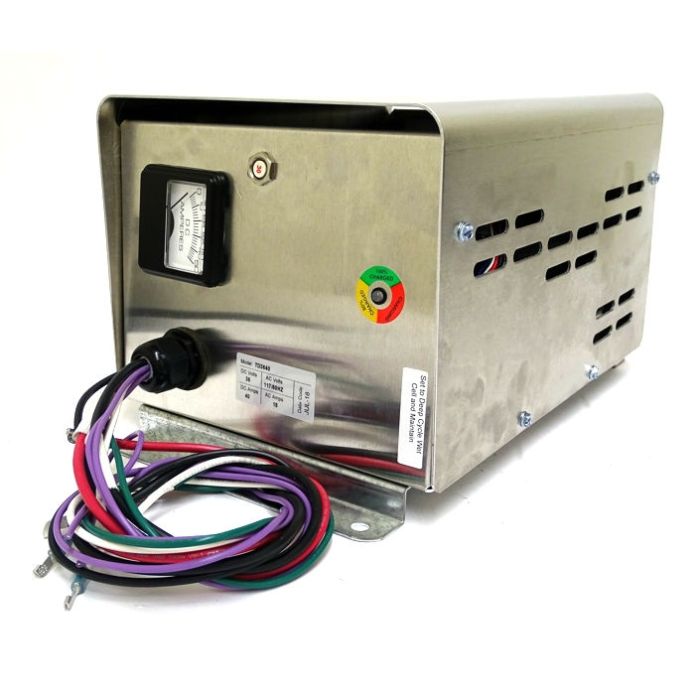

The 24 Volt 40 Amp Quick Charge TD2440 Direct OEM Replacement Battery Charger for Taylor Dunn chargers 79-302-15. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
TD2440 Taylor Dunn 24V 40A Replacement Charger Features:
- Designed to replace 79-302-15 OnBoard Charger
- Replaces Lester model number 13760
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- No moving parts, and an integral design
- Fully automatic with float maintenance
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- Built to Last, Not a Throw-Away Model
- 3 Year warranty & MADE IN USA
These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge TD2440 On Board industrial charger is made specifically for Taylor Dunn personnel carriers and haulers.
| Brand | Quick Charge |
|---|---|
| Model | TD2440 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 28 |
| Max AC Current (A) | 10 |
| Output Voltage - Float (V) | 27 |
| Output Banks | 1 |
| Max DC Current (A) | 40 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 330 x 203 x 190 |
| Weight (lb) | 36 |
| Dimensions (LxWxH - inches) | 13 x 8.0 x 7.5 |
