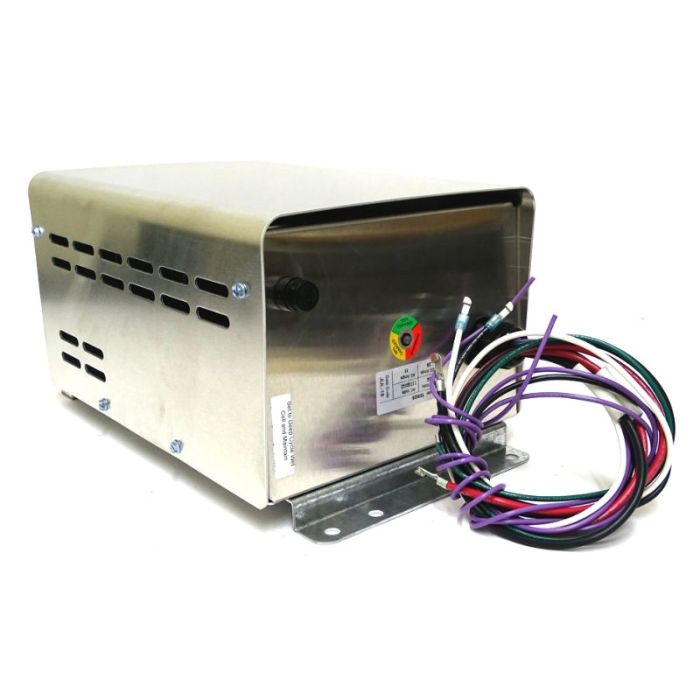

Taylor Dunn 79-309-10, 79-303-25 Charger by Quick Charge TD4825
$592.00
In stock
SKU
TD4825
The 48 Volt 25Ah Quick Charge TD4825 Direct OEM Replacement Battery Charger for Taylor Dunn charger 79-303-25, 79-309-10. Ships directly from manufacturer. If we indicate a build delay, please note that Next Day & 2 Day Air orders go to the front of the line and ship same day.
TD4825 Taylor Dunn Replacement Charger Features:
- Designed to replace 79-309-10, 79-303-25 OnBoard Charger
- Replaces Lester models 16910, 22620
- Lead Acid (Wet/AGM) and Gelled Electrolyte batteries
- Reverse polarity spark free operation
- Fully automatic with float maintenance
- No moving parts, and an integral design
- Return to charge maintenance mode
- Near bullet proof: Tough die cast enclosure
- 3 Year warranty & MADE IN USA
These heavy-duty chargers pack a punch when comparing their physical size to overall power output! These energy efficient chargers use up to 25% less energy than comparable ferroresonant OEM chargers. This Quick Charge TD4825 On Board charger is made specifically for Taylor Dunn personnel carriers and haulers.The old Quick Charge part number was TDET48v/25 and an equivalent Lester number is 22620 and 16910.
| Brand | Quick Charge |
|---|---|
| Model | TD4825 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 60 |
| Voltage (VDC) | 48 |
| Input Voltage (VAC) | 120 |
| Output Voltage - Charging (V) | 58.8 |
| Max AC Current (A) | 14 |
| Output Voltage - Float (V) | 54.24 |
| Output Banks | 1 |
| Max DC Current (A) | 25 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 3 Year |
| Dimensions (LxWxH - metric) | 381 x 203 x 184 |
| Weight (lb) | 35.8 |
| Dimensions (LxWxH - inches) | 15 x 8.0 x 7.25 |
