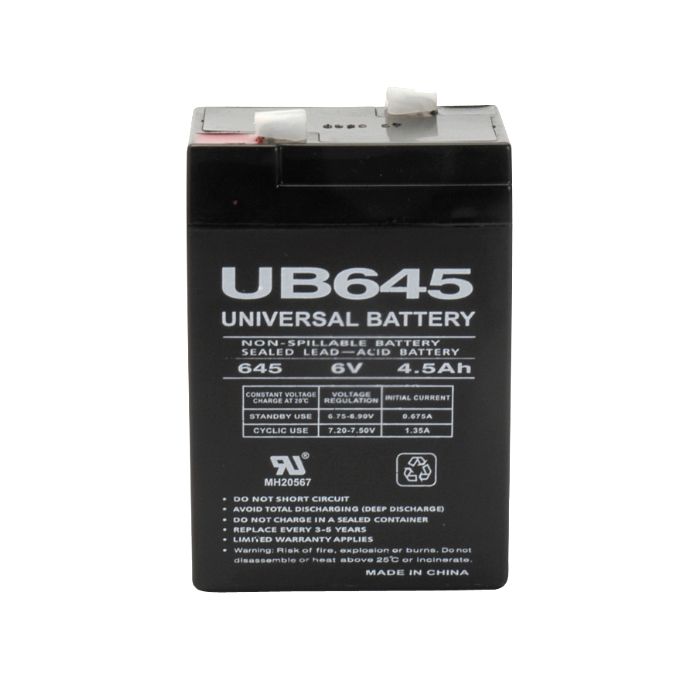

UPG UB645-F1 6 Volt 4.5Ah Sealed Lead Acid Battery
Substituting Energy Power EP-SLA6-5; it is a slight upgrade to UB645
This 6 volt 4.5 amp hour rechargeable sealed lead acid battery is a replacement for numerous brands. See the full compatibility list below. It is used extensively in the emergency lighting and medical device markets. Companies include Criticare Systems, Edwards, Emergi-lite, Light Alarms, Lithonia, Sure Light, Teledyne and many other product brands. Please click on the 'This Product Fits' tab to view a complete list. Also be sure to take note of how many replacement batteries you will require as some applications use more than one.
This UB645 battery comes with F1, also known as T1 terminals which are 0.187 inches wide. It has a long dependable service life when operated under normal conditions and is completely maintenance free. There is no need to add electrolyte or worry about spills. The valve regulated, spill-proof construction allows for trouble-free, safe operation in any position.
All Universal Power Group (UPG) sealed lead acid batteries, including the UB645-F1 come with a full 1 year replacement warranty.
This 6 Volt 4.5Ah Battery is Compatible With These OEM Part Numbers: | ||||
12-255 | 2UKJ2 | 3CE34 | 3CE35 | 3XE34 |
4PG73 | 4PG74 | 4PG79 | 4PG80 | 4PG88 |
4PH06 | 4PH07 | 4PH08 | 4PH10 | 4PH14 |
4PH19 | 4PH20 | 5YB74 | BP4-6 | BP4.5-6 |
BP5-6 | CE1-5BS | CFM6V4.6 | CP0660 | DG6-5 |
DJW6-4.5 | ELB06042 | ES4-6 | GH640 | GP645 |
GS012P3-LL | HK-3FM4.5 | HYS640 | JC640 | LC-RB064P |
LCR6V4BP | LCR6V4P | LCR6V5P | LP6-4-5-T1 | LP6-4.5 |
NP4-6 | NP4.5-6/A | PC640R-F | PE6-4 | PE6V4.5F1 |
PE6V4F | PEV4F1 | PK645 | PS-640 | PS-640F |
RBC1 | SB604B | SL-0096 | SLA-4-6 | SP6-4.5-T1 |
SW645 | TP6-4 | TP6-4.5 | TP6-4.5W | TR6V4 |
UB645 | WP4-6 | WP4.5-6 |
The UB645-F1 is Compatible With These Devices: | ||
---|---|---|
Able 2 | ||
090985V | ||
Access Battery | ||
SLA640 | ||
Advanced Power Systems | ||
APS46 | ||
Alaris Medical | ||
INTELL PUMP 2001 | INTELL PUMP 522 | INTELL PUMP 821 |
Alexander | ||
G640 | G64016 | GB640 |
LCR6V4P | MB5338 | |
American Bentley | ||
SM0200 OXYGEN METER | SM0200 STAT METER | |
American Hospital Supply | ||
Supply 522 PLUS | Supply 9009183 | MICRORATE INFUSION PUMP |
APC (American Power Company) | ||
200DL | 370CI | AP200 |
BACKUPS 1250 | BACKUPS 1250B | BACKUPS 200 |
BACKUPS 250 | BACKUPS OFFICE 350 | BACKUPS OFFICE 400 |
BP642 | HC1217W | RBK400 |
SMARTUPS 250 | SMARTUPS 370 | SMARTUPS 400 |
SU250 | SU400 | UPS200 |
Atlite | ||
241001 | ||
B & B Battery | ||
BP4-6 | BP4.5-6 | BP456 |
Battery Center | ||
BC640 | BC640WL | |
Baxter Healthcare | ||
2001 MICROATE INF PUMP | 521 MICROATE INF PUMP | 522 CARDIAC OUTPUT COMPUTER |
522 MICROATE INF PUMP | 821 MICROATE INF PUMP | ERICSSON STAT METER SM0200 |
SM0200 BENTLEY OXYGEN | ||
BCI International | ||
7000 OXIMETER | 70000A1 | |
Bird Products Corporation | ||
AVAIN PORTABLE VENTILATOR | ||
Blue Sky | ||
3XM4 | ||
Brooks Equipment | ||
BAT64 | ||
C & D Batteries | ||
GP642 | ||
Cambridge Instruments | ||
502 | ||
Carpenter Watchman | ||
713527 | ||
Cas Medical | ||
9000 BLOOD PRESSURE MONITOR | ||
China Storage Battery | ||
1091 | GH640 | GP640 |
Chloride | ||
100-001-0045 | 100-001-0145 | 100-001-045 |
100-R0l-0145 | 1000010045 | 1000010145 |
1000010148 | 100001045 | 1001145 |
100R010145 | 6V4.5AH | 9F4Y |
CM-L75L2 | CML75L2 | CSU-06 |
CSU-4 | CSU06 | CSU4 |
CSU6D | QT6 | TMFRE150 |
Clockmate Batteries | ||
PSLA0604 | ||
Criticare Systems | ||
502 PULSE OXIMETER | 50245 PULSE OXIMETER | 502US PULSE OXIMETERS |
502 | 503 | 504 |
504 PULSE OXIMETER | 50445 PULSE OXIMETER | 504US PULSE OXIMETERS |
506 | 506 PULSE OXIMETER | 652008 |
PULSE OXIMETER 50245 | TLCO2 | |
Dantona | ||
LEAD 6V 5P | ||
Detex Alarms | ||
ECL230MD | ECL230MO | |
Diamex | ||
DM64 | ||
Dictograph | ||
G6003 | ||
Dual-Lite | ||
12/01/55 | 12/01/95 | 12/01/61 |
0120255 | 12295 | 12361 |
BDG | CH100L | CLA106 |
EDRWWMPUMP | EDS | EPP |
ERS | ICL1 | RLP |
SDG | SRG | WEP |
Durabuilt | ||
CLASS 2 | ||
Dyna Cell | ||
WP46 | ||
Dyna Ray | ||
B6V4 | DR520 | S18186 |
Eagle Picher Batteries | ||
3921 | CF6V4 | CF6V45 |
CFM30V4.6 | CFM6V46 | CFM6V46F6 |
Easy Options | ||
250VA | ||
Edwards | ||
1600A | 1601 | 1620 |
1624 | 1637 | 1660 |
1660-B | 1661 | 1661-B |
1662 | 1662-B | 1663 |
1799-0108 | 1799-108PT | 1799-108WL |
1799-112PT | 1799-112WL | 17990108 |
1799108PT | 9704-3201 | 97043201 |
Elan 1 | ||
MB-6B | 1 MB-6V | MB-6V |
Elgar | ||
IPS400 | IPS600 | |
Elite | ||
EL401 | ||
Elk Batteries | ||
ELK0640 | ||
ELS | ||
EDS640F | EDS64OW | FRX |
Elsar | ||
120 | 122 | FRX |
Emergi-lite | ||
2VM | 80-000 | 80-017 |
BSMMX14R | C3 | CSM-1 |
CSM-9 | EM1 | JF15B |
JSM-9 | JSM-9-1 | LL-6 |
M1 | M1000 | M126 |
M1860004 | ME2N | MI-860004 |
OSM-1 | PRO 2 | PSM-9 |
QSM1 | SMX | WSMX14R |
Emerson | ||
UPS400 | ||
ESP | ||
ESP640 | ||
Excide | ||
100-001-0145 | 103-101 | 103-103 |
2145101200 | 6V4.6 | 6V4.6AH |
CR6-4.5 | DM-1 | DM-2 |
M126 | Q4 | S-10 |
S-200 | Q4S-300 | SSG |
Franz Medical | ||
INFUSION PUMP | ||
Gaston | ||
GT6-4.5 | ||
Global Yuasa Batteries | ||
ES4-6 | ES46 | |
GS Portalac | ||
PE46 | PE46R | PE46RF1 |
PE6V4 | PE6V4F1 | PE6V4WS |
Guardian Douglas Batteries | ||
DG46 | DG65 | DG65F |
DG6-4 | DG6-4WL | |
Hi Light | ||
3901 | 3921 | |
Hi-Capacity | ||
B600 | B645 | B661 |
Hitachi | ||
HP4-6 | HP46 | |
Hitech | ||
HT640 | ||
Holophane / Surelight | ||
M2 | M3 | |
Hubbell | ||
1200005 | HE612 | N4615 |
PE612 | PUP | PUPxxxx |
Impact Instrumentation | ||
305 SUCTION PUMP | 305G SUCTION PUMP | 315 SUCTION PUMP |
Interstate Batteries | ||
BSL0905 | PC640 | |
Jabro | ||
2352 | 2353 | 2551 |
2552 | ||
Johnson Control Batteries | ||
GC640 | JC640 | |
Jolt Batteries | ||
JP640 | SA645 | |
Kalee | ||
CTN6-5F | Warrior Toy Motorcycle KL-30040 | |
Kobe | ||
GP642 | ||
Ladd Steritak | ||
J3000 | Pressure Monitor | J3000 INTER CRANIAL Pressure Monitor |
Lectro Science | ||
500000CP | ||
Life Line | ||
H102 COMMUNICATOR | HC102 AUTODIAL | HC102 HOME UNIT |
Light Alarms | ||
2DM-3 | 2DM3 | 2DS-3 |
2DS3 | 2FL-1 | 2FL1 |
2MS | 2RC-1 | 2RC1 |
5E15AA | 5E15BF | 5E15BK |
5E15BL | 5E15BS | 5E1-5AA |
660-0004 | 8600004 | 8600016 |
B200-X7 | CA | CE1-5AA |
CE15BF | CE15BK | CE15BL |
CE15BN | CE15BS | CEI-5AA |
DM-3 | DS3 | E-8W |
H1 | KB-1 | KB-13CP |
L1 | LCR6V4P | LL6 |
RC | RSQG | RSQGD |
RX7 | RXE8 | SDS-3 |
SGL-D | SGQ | SGL |
U8 | UX7 | UXE8 |
UXE8-A | X7 | XE-8 |
XE-9 | XE6 | XE9 |
Model | EP-SLA6-5 (UB645-F1) |
---|---|
Brand | UPG |
Capacity 20Hr (Ah) | 4.5 |
Terminal | F1 |
Dimensions (LxWxH - inches) | 2.76 x 1.85 x 4.17 |
Dimensions (LxWxH - metric) | 70 x 47 x 106 |
Weight (lb) | 1.83 |
Chemistry | AGM - Factory Sealed |
Warranty | 1 Yr Replacement |
