Yamaha 48V 2-Pin Golf Cart Charger JAC1548 (1996 thru 2006)
$365.00
In stock
SKU
JAC1548H-YAM-2Pin

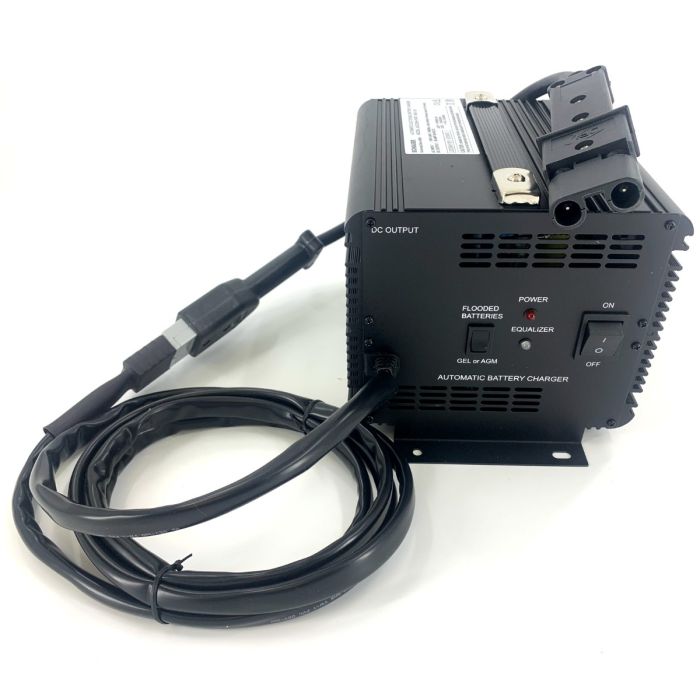

Comes with Two Prong Yamaha Charger Plug for carts made between 1996 and 2006. The JAC1548 Schauer charger is a 48V 15A Smart 3 Stage Charger.
This replacement JAC15148 Schauer Yamaha golf cart charger is specifically designed to work with Yamaha Carts built between 1996 and 2006 that use the two prong "eye glass" connector. The JAC1548 features an auto-sensing universal input from 100-240VAC and will never over charge your batteries. It is perfect for wet cell, gel and AGM style deep cycle batteries. The JAC1548 is made with a durable aluminum case and has flanges for mounting. This unit comes with an SB50 lead and a 1.5ft Yamaha pig tail connector.
| Brand | Schauer |
|---|---|
| Model | JAC1548 |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 48 |
| Input Voltage (VAC) | 100-240 |
| Output Voltage - Charging (V) | 59.5 or 57.6 |
| Output Voltage - Float (V) | 53.6 |
| Output Banks | 1 |
| Max DC Current (A) | 15 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 286 x 178 x 171 |
| Weight (lb) | 11 |
| Dimensions (LxWxH - inches) | 11.25 x 7.0 x 6.75 |
