24 Volt 20 Amp Tennant Floor Scrubber Charger Replacement with SB50 Red
$368.00
In stock
SKU
JAC2024H-SB50-RED-HW
Mountable Commercial Grade 3 Stage Charger with hardwired SB50 Red Connector

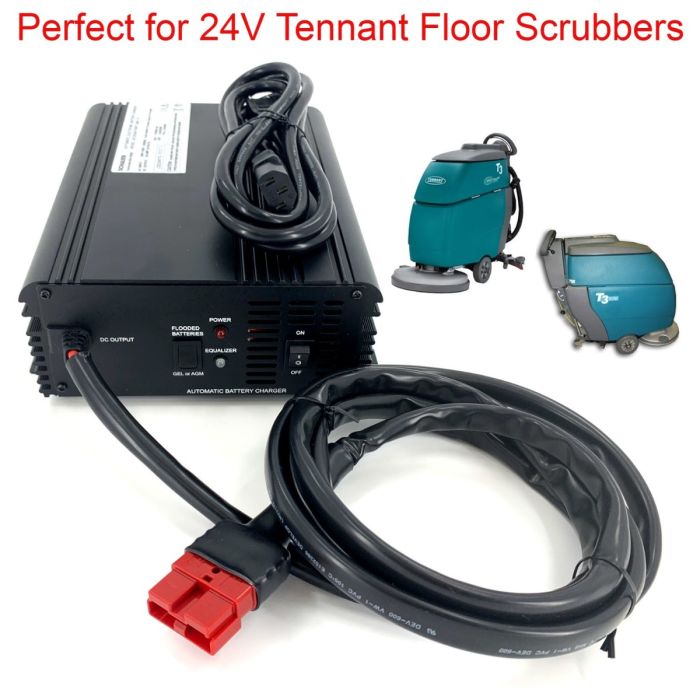

Replace your Tennant floor scrubber charger with the Schauer 24V 20A smart charger. This version of the JAC2024H comes with the red SB50 connector hardwired onto the unit. (The standard JAC2024H has the grey SB50 connector hardwired and would require the detachable SB50-Grey-toSB50-Red pigtail converter for your Tennant T3 scrubber). Can Replace the onboard charger, SPE hf2-v4-tn-24-20 and 9009486.
Use with: Tennant T2,T3, T5, T7, T300, 1610; Clarke Focus II, Encore S20; Nobles SS3, SS5 Speed Scrub Ride
| Brand | Schauer |
|---|---|
| Model | JAC2024H-SB50-RED-HW |
| Chemistry | Lead Acid |
| Input Frequency (Hz) | 50/60 |
| Voltage (VDC) | 24 |
| Input Voltage (VAC) | 100-240 |
| Output Voltage - Charging (V) | 29.7 or 28.8 |
| Output Voltage - Float (V) | 26.8 |
| Output Banks | 1 |
| Max DC Current (A) | 20 |
| Operating Temp. Range (oC) | 32-120 |
| Warranty | 2 Year |
| Dimensions (LxWxH - metric) | 267 x 210 x 86 |
| Weight (lb) | 8 |
| Dimensions (LxWxH - inches) | 10.5 x 8.25 x 3.40 |
