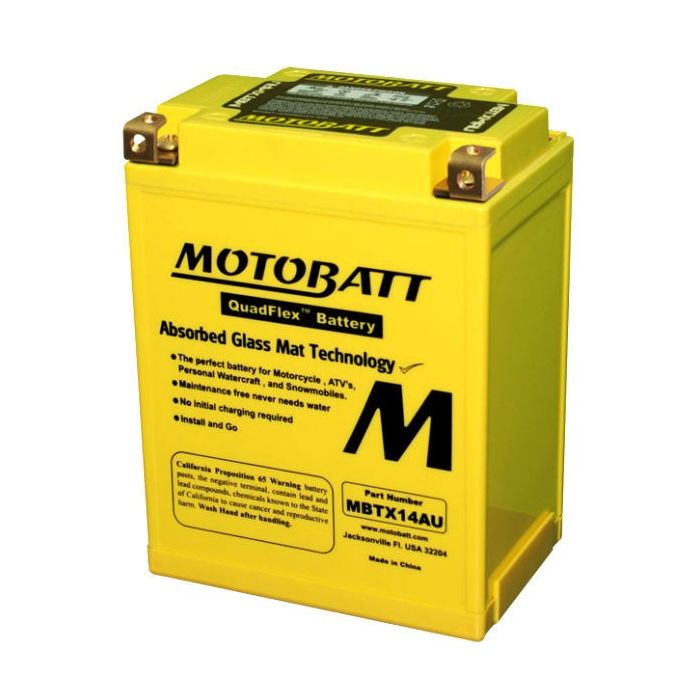

MotoBatt MBTX14AUMotoBatt MBTX14AU
Move your mouse over image or click to enlarge

MotoBatt MBTX14AU Sealed AGM Upgrade

Quick Overview

Replaces 19 Yuasa OEM Batteries; Comes with 2 Year Warranty
  • Availability

    In Stock

  • Product Brand

    MotoBatt

  • Model Number

    MBTX14AU

  • Voltage (V)

    12

  • Cold Crank Amps (CCA)

    210

  • Capacity (Ah)

    16.5

  • Warranty

    24 Mo (1Yr + 1Yr)

$107.95
ADD TO CART

This sealed AGM QuadFlex battery offers up to 35% more capacity compared with OEM batteries it replaces. By using 4 terminal positions and a removable bottom height spacer the MBTX14AU upgrades 19 OEM part numbers and lowers the environmental impact. This MotoBatt MBTX14AU battery comes with a 2 year warranty and is charged and ready to roll. Use the chart below to compare which batteries can be replaced by the MBTX14AU AGM sealed battery:

The MotoBatt MBTX14AU QuadFlex AGM Battery Replaces These 19 Yuasa Batteries
MotoBatt SKUAhCCAL x W x H (inches)L x W x H (mm)Total Terminals
MBTX14AU16.52105.313.546.61135901684 QuadFlex

Replaces These OEM Yuasa Part Numbers
OEM ModelAhCCAL x W x H (inches)L x W x H (mm)Spacer Height
YTX14AH142105.283.506.54134891668mm0.31"
YTX14AH-BS121905.283.506.5413489166
YTX14AHL122105.283.506.5413489166Total Heght
YB14-A1141905.283.506.5413489166176 mm6.93"
YB14-A2141905.283.506.5413489166
YB14A-A141905.283.506.9313489176
YB14A-A1141905.283.506.9313489176
YB14A-A2141905.283.506.9313489176
YB14-B1141905.283.506.5413489166
YB14-B2141905.283.506.5413489166
YB14L-A1141905.283.506.5413489166
YB14L-A2141905.283.506.5413489166
YB14L-B1141905.283.506.5413489166
YB14L-B2141905.283.506.5413489166
YB14L-A2S141905.283.506.5413489166
SYB14L-A2141905.283.506.5413489166
SYB14L-B2141905.283.506.5413489166
12N14-3A141305.283.506.5413489166
12N14-3B141305.283.506.5413489166
Product Specs
Availability Note: In Stock
Brand: MotoBatt
Model: MBTX14AU
Capacity 20Hr (Ah): 16.5
Cold Cranking Amps (CCA): 210
Voltage (V): 12
Chemistry: AGM - Factory Sealed
Warranty: 24 Mo (1Yr + 1Yr)
Polarity: +++|--- and ---|+++
Cranking Amps (CA): No
Pulse Cranking Amps (PCA): No
Dimensions (LxWxH - inches): 5.31 x 3.54 x 6.61
Dimensions (LxWxH - metric): 135 x 90 x 168
Weight (lb): 11.9
OEM Replacement: YTX14AHL-BS, YTX14AH-BS, YB14A-A2, YB14L-A2 and more...
This Product Fits
Motorcycle
  • APRILIA Atlantic (2003-2005)
  • APRILIA Scarabeo (2004-2005)
  • BIMOTA YB8-YB10 (1992-1995)
  • BIMOTA DB2 (1993-1995)
  • BIMOTA DB2 Final Edition (1997)
  • BIMOTA Tesi (1991-1995)
  • CAGIVA Elefant Bifaro (1989)
  • CAGIVA T4 E Elefant (-1988)
  • CAGIVA Elefant 2 Cyl. (-1986)
  • CAGIVA T4 E Elefant, W12 (-1987)
  • CAN-AM T4E, Elefant, W12 (1987)
  • DUCATI SS Supersport, Replica (1982)
  • DUCATI F1, Montijuich, Paso (1987-1990)
  • DUCATI Indiana (All Years)
  • DUCATI Alazurra, Indiana, Pantah (All Years)
  • DUCATI Pantah (All Years)
  • DUCATI TL (All Years)
  • GILERA Nordwest (1993)
  • GILERA RC 600C (1993)
  • GILERA Top Rally, XRT (All Years)
  • GILERA XRT (All Years)
  • HARLEY-DAVIDSON MT500 (Military) (All Years)
  • HONDA CB1100F Super Sport (1983)
  • HONDA CB1000C Custom (1983)
  • HONDA CBR1000F Hurricane (1987-1996)
  • HONDA CB900C,F (1980-1982)
  • HONDA VT800C Shadow (1988)
  • HONDA CB750 Nighthawk (1991-2003)
  • HONDA CB750C Custom (1980-1982)
  • HONDA CB750C V45 Magna (1982-1983)
  • HONDA CB750F Super Sport (1975-1982)
  • HONDA CB750K Four (1969-1982)
  • HONDA CB750K Limited Edition (1979)
  • HONDA CB750SC Nighthawk (1982-1983)
  • HONDA V750S V45 Sabre (1982-1983)
  • HONDA VF750 V45 Interceptor (1983-1984)
  • HONDA CB700SC Nighthawk 'S' (1984-1986)
  • HONDA VF700 Interceptor (1984-1985)
  • HONDA VF700C Magna (1984-1986)
  • HONDA VF700S Sabre (1984-1985)
  • HONDA VT700C Shadow (1986-1987)
  • HONDA CX650C Custom (1983)
  • HONDA CX650T Turbo (1983)
  • HONDA GL650I Silver Wing Interstate (1983)
  • HONDA CX500, C, D, T (1978-1982)
  • HONDA FT500 Ascot (1982-1983)
  • HONDA GL500, I Silver Wing (1981-1982)
  • KAWASAKI ZN1100-B LTD (1984-1985)
  • KAWASAKI ZX1100-C Ninja ZX-11 (1990-1993)
  • KAWASAKI KZ1000-C Police, Z1-R (1978-1979)
  • KAWASAKI KZ1000-G Classic (1980)
  • KAWASAKI KZ1000, LTD (1977-1980)
  • KAWASAKI ZL1000-A (1987)
  • KAWASAKI ZX1000-A Ninja (1986-1990)
  • KAWASAKI ZX10R (1986-1990)
  • KAWASAKI Z1 Series (1973-1975)
  • KAWASAKI ZL900-A Eliminator (1985-1986)
  • KAWASAKI ZX900-A Ninja (1984-1986)
  • KAWASAKI KZ750-F LTD, Spectre (1983)
  • KAWASAKI KZ750,LTD,CSR (1976-1979)
  • KAWASAKI VN750-A Vulcan (1986-2006)
  • KAWASAKI ZN750-A LTD (1984-1985)
  • KAWASAKI ZX750-E Turbo, GPz (1983-1985)
  • KAWASAKI ZX750-F Ninja (1987-1990)
  • KAWASAKI ZX750-H Ninja ZX-7 (1989)
  • KAWASAKI VN700-A Vulcan (1985)
  • KAWASAKI ZN700-A LTD (1984-1985)
  • KAWASAKI KL650-A,E, KLR (1987-2008)
  • KAWASAKI KL650-B Tengai (1990-1991)
  • KAWASAKI KL600-B KLR (1985-1986)
  • KAWASAKI EX500-A (1987-1993)
  • KAWASAKI EX500-D Ninja 500R (1994-2009)
  • MOTO GUZZI Breva (2004-2009)
  • NORTON 850 Commando, Commando(75) (All Years)
  • ROYAL ENFIELD All Electric Start Models (2000-2003)
  • SUZUKI GV1200GL Madura (1985-1986)
  • SUZUKI GS1150E,S (1983-1986)
  • SUZUKI GS1100E,S (1980-1983)
  • SUZUKI GS1100G,K, L, Katana (1982-1984)
  • SUZUKI GS1100S, Katana (1981-2001)
  • SUZUKI GSX-R1100 (1986-1992)
  • SUZUKI GSX1100F Katana (1988-1993)
  • SUZUKI GS1000 (1978-1982)
  • SUZUKI GS850G, GL (1979-1983)
  • SUZUKI GS750, Katana (1977-1983)
  • SUZUKI GSX-R750 (1986-1992)
  • SUZUKI GSX750F Katana (1989-1997)
  • SUZUKI GT750 LeMans (1972-1977)
  • SUZUKI GS700E, GS700ES (1985)
  • SUZUKI GV700GL Madura (1985)
  • SUZUKI GR650 Tempter, X (1983)
  • SUZUKI GS650 (All) (1981-1983)
  • SUZUKI LS650 Savage, S40 (1986-2008)
  • SUZUKI XN85 Turbo (1983)
  • TRIUMPH All Other Models (exc. Trophy) (1993-1999)
  • TRIUMPH Daytona (1992-1993)
  • TRIUMPH All Other Models (1996-1997)
  • TRIUMPH All Other Models (1991-2001)
  • TRIUMPH Thunderbird (2002-2003)
  • TRIUMPH All Other Models (1993-1997)
  • YAMAHA FJ1200 (1986-1990)
  • YAMAHA FJ1100 (1984-1985)
  • YAMAHA FZR1000 (1987-1990)
  • YAMAHA XJ900R Seca (1983)
  • YAMAHA XS850 (All) (1980-1981)
  • YAMAHA FZ750, FZR750 (1985-1988)
  • YAMAHA XJ750 Maxim (1982-1983)
  • YAMAHA XJ750 Maxim, XJ750X (1985-1986)
  • YAMAHA XJ750M Midnight Maxim (1983)
  • YAMAHA XJ750R Seca (1981-1983)
  • YAMAHA XS750 (All) (1977-1979)
  • YAMAHA FZ700, Fazer (1986-1987)
  • YAMAHA XJ700 Maxim, XJ700X (1985-1986)
  • YAMAHA TX650 (1974)
  • YAMAHA XS650 (1975-1983)
  • YAMAHA XZ550R Vision (1982-1983)
  • YAMAHA TX500 (1973-1974)
  • YAMAHA XS500 (1975-1978)
ATV
  • ARCTIC CAT All Models (Thru 2005)
  • ARCTIC CAT All Models (All Years)
  • ARCTIC CAT 366 (All Years)
  • ARCTIC CAT TRV400 (2009)
  • ARCTIC CAT 650 4X4 Automatic (2004-2006)
  • ARCTIC CAT 650H1, TBX650 (2009)
  • ARCTIC CAT TRV700 (2009)
  • BOMBARDIER (CAN-AM) Rally (2002-2006)
  • HONDA ATC Big Red (1982-1984)
  • HONDA ATC200M (1984-1985)
  • HONDA TRX200 Four Trax (1984)
  • KAWASAKI KLF220-A Bayou(CN) (1992-2002)
  • KAWASAKI KLF250-A Bayou(CN) (2003-2005)
  • KAWASAKI KEF300-A Lakota (1995-2000)
  • KAWASAKI KEF300-A,B Lakota Sport (2001-2003)
  • KAWASAKI KLF300-B Bayou (1988-2004)
  • KAWASAKI KLF300-C Bayou 300 4x4 (1989-2004)
  • KAWASAKI KVF300-A Prairie 300,4x4 (1999-2002)
  • KAWASAKI KVF300-B Prairie 300,4x4 (1999-2002)
  • KAWASAKI KVF360 Prarie (2009)
  • KAWASAKI KVF360-A,B,C Prairie 360,4x4 (2003-2008)
  • KAWASAKI KVF400-A Prairie 400 4x4 (1997-2000)
  • KAWASAKI KVF400-B Prairie 400 4x4 (1998-2000)
  • KAWASAKI KVF400-C Prairie 400,4x4 (1999-2002)
  • KAWASAKI KVF400-D Prairie 400,4x4 (1999-2002)
  • POLARIS Hawkeye, Sportsman 300 (2006-2009)
  • POLARIS All Models (1987-2002)
  • POLARIS Magnum, Trail Boss (2003-2009)
  • POLARIS Sportsman (1998-2001)
  • POLARIS All Models (1994-2008)
  • POLARIS Sportsman (2009)
  • POLARIS All Models (1995-2002)
  • POLARIS Diesel 0.445 Liter (secondary) (1999-2003)
  • POLARIS All Models (Excl.Predator) (1999-2009)
  • SUZUKI LT-4WD QuadRunner (1987-1999)
  • SUZUKI LT-F250 QuadRunner (1988-2001)
  • SUZUKI LT-F250F QuadRunner (1999-2002)
  • SUZUKI LT-F4WDX KingQuad (1991-1999)
  • SUZUKI LT-F300F KingQuad (1999-2002)
  • SUZUKI LT300E QuadRunner 300E (1987-1989)
  • YAMAHA YFM200, DX Moto 4 (1985-1989)
  • YAMAHA YTM200, E, ER Tri Moto (1983-1985)
  • YAMAHA YFM225 Moto 4 (1986-1988)
  • YAMAHA YTM225DR, DX Tri-Moto (1983-1986)
  • YAMAHA YFU-1-T Pro-Hauler (1989)
  • YAMAHA YFM 250 Bear Tracker (1999-2004)
  • YAMAHA YFM250 Moto 4 (1989-1991)
  • YAMAHA YFM250B Big Bear (2007-2008)
  • YAMAHA YFM250B Bruin (2005-2006)
  • YAMAHA YFM350B Bruin (2004-2006)
  • YAMAHA YFM350ER Moto 4 (1987-1995)
  • YAMAHA YFM350F, U Big Bear (1987-1999)
  • YAMAHA YFM350FX Wolverine (2006-2008)
  • YAMAHA YFM350G, FG Grizzly (2007-2009)
  • YAMAHA YFP350 TerraPro (1988)
  • YAMAHA YFM400FG Grizzly (2007-2008)
  • YAMAHA YFM400FW Kodiak (1993-1995)
  • YAMAHA YFM400FW Kodiak-Automatic (2003-2006)
Personal Watercraft
  • ARCTIC CAT Tiger Shark (1997-1999)
UTV
  • KAWASAKI KAF400, Mule 600, 610 (2005-2007)
  • KAWASAKI KAF300, Mule 500, 520, 550 (All Years)
Snowmobile
  • ARCTIC CAT El Tigre 5000 (1987-1988)
  • ARCTIC CAT Bearcat 440 (1995-2000)
  • ARCTIC CAT Panther 440 (1997-2003)
  • ARCTIC CAT Z 440 (2002-2007)
  • ARCTIC CAT Panther 370 (2001-2004)
  • ARCTIC CAT Panther 370 (2007)
  • ARCTIC CAT Z 370 (2002-2007)
  • ARCTIC CAT Bearcat 340 (1995-2000)
  • ARCTIC CAT Panther 340 (1997-2000)
  • POLARIS IQ Touring (Thru 2009)
  • YAMAHA LE (1989-1998)
  • YAMAHA PZ480E Phazer Deluxe (1984-1989)
  • YAMAHA PZ480E Phazer II LE, SS (1990-1998)
  • YAMAHA VT480 Venture GT (1992-1993)
  • YAMAHA VT480 Venture TR Electric (1998)
  • YAMAHA VT480 Venture XL (1991-1997)
  • YAMAHA CS340 Ovation Deluxe-LE (1989-1998)
  • YAMAHA EC340 Excel III (1981-1988)
  • YAMAHA ET340E Enticer (1980)
  • YAMAHA SV125E Sno-Sport (1990-1991)
FAQs


FAQs About This Product

Ask a Question

  • The motobatt is not the exact size of the ytx14ah. If your battery is not the exact size it will not fit. Does this small difference matter?
    There are no known fitment concerns for this MotoBatt battery. We have been with MotoBatt since their inception and do our best to post on the application page when fitment concerns arise do to, for example, form fitted hold down straps. I would suspect you will be fine, but if not we have a fitment guarantee. I would have no worries.
